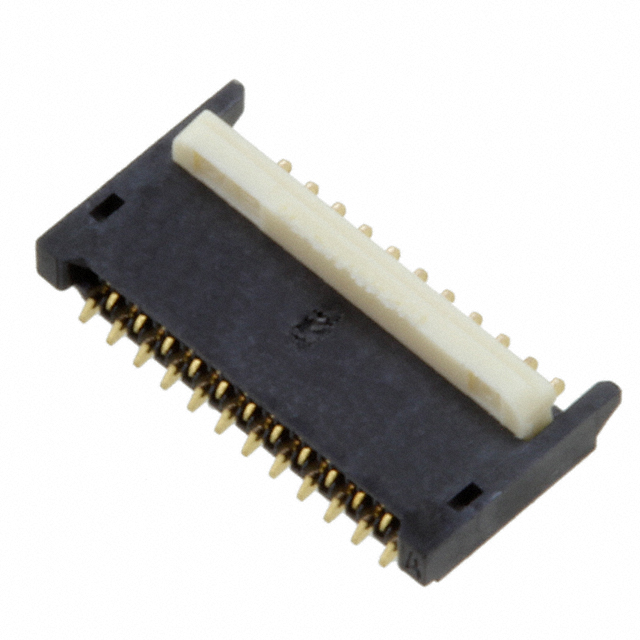

FR02C023JA1-R5000
Or copy the link below:
- Mfr.Part #
- FR02C023JA1-R5000
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 23POS 0.20MM R/A
- Stock
- 13,631
- In Stock ：
- 13,631
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Factory Lead Time :
- 14 Weeks
- Packaging :
- Tape and Reel (TR)
- Number of Positions :
- 23
- Mounting Type :
- Surface Mount, Right Angle
- Connector/Contact Type :
- Contacts, Top and Bottom
- Housing Material :
- Plastic
- Height Above Board :
- 0.032 0.81mm
- Cable End Type :
- Tabbed or Tapered
- Termination :
- Solder
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Pitch :
- 0.008 0.20mm
- Flat Flex Type :
- FPC
- Current Rating :
- 250mA
- Operating Temperature :
- -40°C~85°C
- Actuator Color :
- Natural
- Mount :
- Surface Mount
- Feature :
- Low Insertion Force (LIF)
- RoHS Status :
- RoHS Compliant
- FFC, FCB Thickness :
- 0.20mm
- Series :
- FR02
- Voltage - Rated :
- 50V
- Current Rating (Amps) :
- 0.25A per Contact
- Housing Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Published :
- 2014
- Contact Material :
- Phosphor Bronze
- Locking Feature :
- Flip Lock, Backlock
- Datasheets
- FR02C023JA1-R5000
FR02 Series FPC Contacts, Top and Bottom Tape & Reel (TR) 0.008 0.20mm Solder 23 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.25A per Contact
FR02C023JA1-R5000 Overview
Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the FR02 Series.In many ways, Low Insertion Force (LIF) makes it more powerful.By Surface Mount, the part is mounted.Operating temperature is set to -40°C~85°C.
FR02C023JA1-R5000 Features
FR02 series
FR02C023JA1-R5000 Applications
There are a lot of JAE Electronics
FR02C023JA1-R5000 FFC, FPC (Flat Flexible) Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
