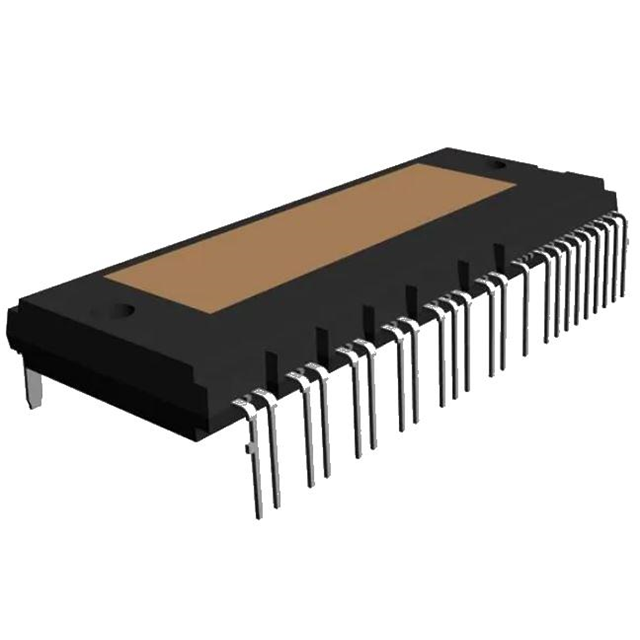

FNA25060
Or copy the link below:
- Mfr.Part #
- FNA25060
- Manufacturer
- onsemi
- Package / Case
- 34-PowerDIP Module (1.480, 37.60mm)
- Datasheet
- Download
- Description
- INTELLIGENT POWER MODULE, 600 V,
- Stock
- 22,285
- In Stock ：
- 22,285
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- onsemi
- Product Category :
- Power Driver Modules
- Type :
- IGBT
- Max Current Rating :
- 50A
- Min Operating Temperature :
- -40°C
- Voltage - Isolation :
- 2500Vrms
- Package / Case :
- 34-PowerDIP Module (1.480, 37.60mm)
- JESD-30 Code :
- R-XDMA-T34
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- HTS Code :
- 8541.29.00.95
- Reach Compliance Code :
- not_compliant
- Height Seated (Max) :
- 8.1mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Supply Voltage-Min (Vsup) :
- 14V
- RoHS Status :
- ROHS3 Compliant
- Series :
- Motion SPM® 2
- Min Breakdown Voltage :
- 600V
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Collector Emitter Voltage (VCEO) :
- 2.1V
- Number of Terminations :
- 34
- Number of Functions :
- 1
- Configuration :
- 3 Phase
- Length :
- 80mm
- Mount :
- Through Hole
- Supply Voltage-Max (Vsup) :
- 16.5V
- Supply Voltage :
- 15V
- Published :
- 2015
- Max Operating Temperature :
- 150°C
- Factory Lead Time :
- 7 Weeks
- Mounting Type :
- Through Hole
- Width :
- 33mm
- Terminal Position :
- Dual
- Output Current-Max :
- 100A
- Weight :
- 32.58g
- Datasheets
- FNA25060
FNA25060 Documents
FNA25060 datasheet pdf and Power Driver Modules product details from ON Semiconductor stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
Manufacturer related products
Catalog related products
Related products
| Part | Manufacturer | Stock | Description |
|---|---|---|---|
| FNA21012A | onsemi | 3 | MODULE SPM 1.2V 10A 34PWRDIP |
| FNA22512A | onsemi | 12 | MODULE SPM 1.2KV 25A 34PWRDIP |
| FNA23060 | onsemi | 4 | MODULE SPM 600V 30A 34PWRDIP |
| FNA23512A | onsemi | 10,743 | MODULE SPM 1.2V 35A 34PWRDIP |
| FNA25012A | onsemi | 41,615 | IPM SPM34 1200V 50A |
| FNA25060 | onsemi | 14,143 | MOD SPM 600V 50A SPMCA-A34 |
| FNA27560 | onsemi | 34,510 | MODULE SPM 600V 75A 34PWRDIP |
