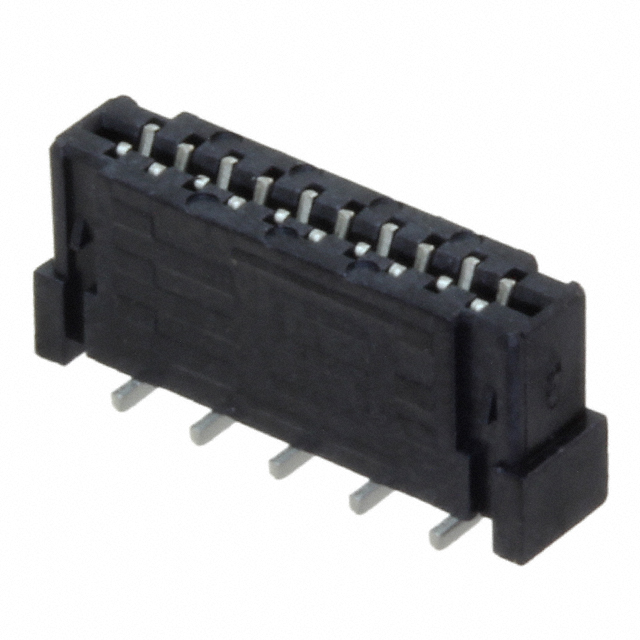

FC1-10-01-T
Or copy the link below:
- Mfr.Part #
- FC1-10-01-T
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- 1MM SINGLE ROW CONN
- Stock
- 3,825
- In Stock ：
- 3,825
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Factory Lead Time :
- 3 Weeks
- Body/Shell Style :
- Socket
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Pitch :
- 0.039 1.00mm
- Current Rating (Amps) :
- 2A per Contact
- Reference Standard :
- UL
- Number of Positions :
- 10
- RoHS Status :
- ROHS3 Compliant
- Flat Flex Type :
- FFC
- FFC, FCB Thickness :
- 0.30mm
- Number Of PCB Rows :
- 1
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- Operating Temperature :
- -55°C~105°C
- Orientation :
- Straight
- Contact Material :
- Phosphor Bronze
- Contact Finish :
- Tin
- Depth :
- 2.77mm
- Series :
- FC1
- Mixed Contacts :
- No
- Number of Rows :
- 1
- Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Packaging :
- Tube
- Termination :
- Solder
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Withstanding Voltage :
- 450VAC V
- Published :
- 2013
- Additional Feature :
- RoHS Compliant
- Insulation Resistance :
- 5000000000Ohm
- Gender :
- Receptacle
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Length :
- 12.33mm
- Pbfree Code :
- yes
- Housing Color :
- Black
- PCB Contact Pattern :
- RECTANGULAR
- Connector/Contact Type :
- Contacts, Vertical - 2 Sided
- DIN Conformance :
- No
- Height Above Board :
- 0.204 5.18mm
- Contact Style :
- DUAL PRONG
- Mating Cycles :
- 25
- JESD-609 Code :
- e3
- Reliability :
- COMMERCIAL
- Total Number of Contacts :
- 10
- Datasheets
- FC1-10-01-T
FC1 Series FFC Contacts, Vertical - 2 Sided Tube 0.039 1.00mm Solder 10 Positions Surface Mount Tin -55°C~105°C 2A per Contact
FC1-10-01-T Overview
Surface Mount indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the FC1 Series.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.By Surface Mount, the part is mounted.Operating temperature is set to -55°C~105°C.
FC1-10-01-T Features
FC1 series
FC1-10-01-T Applications
There are a lot of Samtec Inc.
FC1-10-01-T FFC, FPC (Flat Flexible) Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
