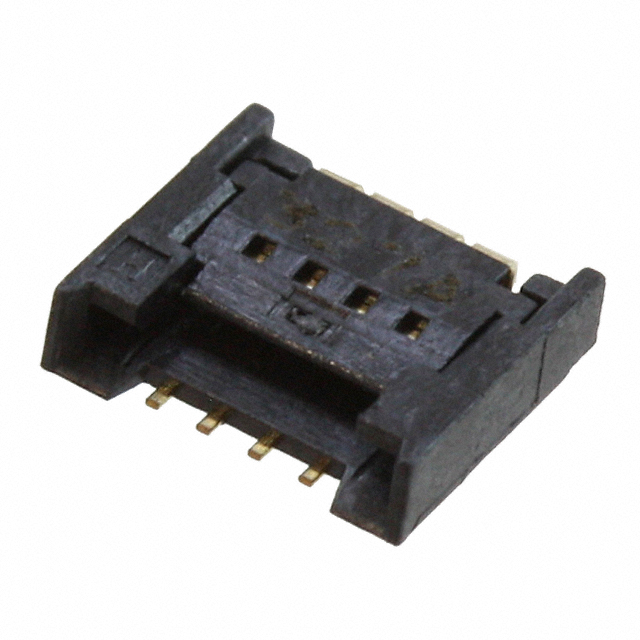

FA1004SA1-R8000
Or copy the link below:
- Mfr.Part #
- FA1004SA1-R8000
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 4POS 0.50MM R/A
- Stock
- 1,956
- In Stock ：
- 1,956
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height Above Board :
- 0.035 0.88mm
- Mounting Type :
- Surface Mount, Right Angle
- Termination :
- Solder
- Mount :
- Surface Mount
- Pitch :
- 0.020 0.50mm
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 4
- Contact Material :
- COPPER ALLOY
- Current Rating :
- 500mA
- Current Rating (Amps) :
- 0.5A per Contact
- Contact Finish :
- Gold
- Flammability Rating :
- UL94 V-0
- Feature :
- Low Insertion Force (LIF)
- Mating Cycles :
- 20
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Factory Lead Time :
- 14 Weeks
- Cable End Type :
- Tabbed
- Contact Location :
- Opposite Side
- FFC, FCB Thickness :
- 0.20mm
- Operating Temperature :
- -40°C~85°C
- Housing Color :
- Black
- Connector/Contact Type :
- Contacts, Top and Bottom
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 50V
- Housing Material :
- Plastic
- Flat Flex Type :
- FPC
- Published :
- 2012
- Series :
- FA10
- Datasheets
- FA1004SA1-R8000
FA10 Series FPC Contacts, Top and Bottom Tape & Reel (TR) 0.020 0.50mm Solder 4 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A per Contact
FA1004SA1-R8000 Overview
This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the FA10 Series.Several benefits come from the Low Insertion Force (LIF) feature.There is a mounting hole at Surface Mount.Devices operate at -40°C~85°C operating temperatures.
FA1004SA1-R8000 Features
FA10 series
FA1004SA1-R8000 Applications
There are a lot of JAE Electronics
FA1004SA1-R8000 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
