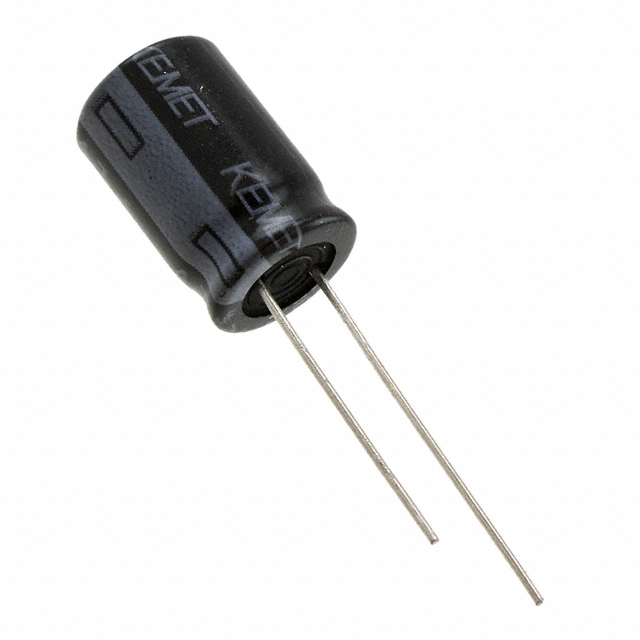

ESG475M400AH2AA

Manufacturer :

KEMET

Product Category :

Aluminum Electrolytic Capacitors

Height Seated (Max) :

0.669 17.00mm

Mount :

PCB, Through Hole

Published :

2013

Lead Length :

20mm

Dielectric Material :

Aluminium

Impedance :

3.5Ohm

Ripple Current :

50mA

Lifetime @ Temp :

5000 Hrs @ 105°C

Ripple Current @ Low Frequency :

50mA @ 120Hz

Voltage :

400V

Termination :

Radial

Series :

ESG

Height :

15mm

Lead Pitch :

5mm

Dissipation Factor :

0.24 %

Lead/Base Style :

Straight

Terminal Shape :

Wire

ESR (Equivalent Series Resistance) :

3.5Ohm @ 100kHz

Voltage - Rated DC :

400V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Life (Hours) :

5000 hours

Size / Dimension :

0.394Dia 10.00mm

Polarization :

Polar

Leakage Current :

21.28μA

Factory Lead Time :

23 Weeks

Diameter :

10mm

Number of Terminations :

2

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Tolerance :

±20%

Package / Case :

Radial, Can

Lead Diameter :

600 µm

Capacitance :

4.7μF

Mounting Type :

Through Hole

Operating Temperature :

-40°C~105°C

Applications :

GENERAL PURPOSE

Lead Spacing :

0.197 5.00mm

ECCN Code :

EAR99

Ripple Current @ High Frequency :

80mA @ 10kHz

Packing Method :

Box

Packaging :

Bulk

Radiation Hardening :

No
