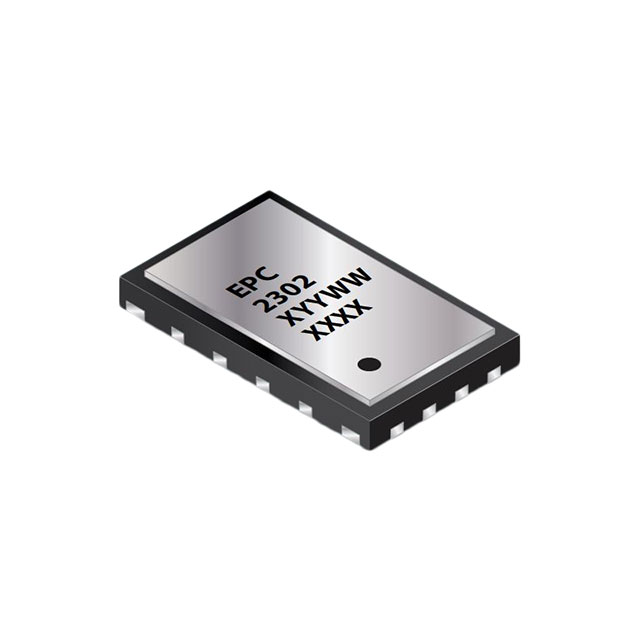

EPC2302

Manufacturer :

EPC

Product Category :

Transistors - FETs, MOSFETs - Single

Supplier Device Package :

7-QFN (3x5)

Gate Charge (Qg) (Max) @ Vgs :

23 nC @ 5 V

Drain to Source Voltage (Vdss) :

100 V

Series :

eGaN?

Package :

Digi-Reel?

Operating Temperature :

-40°C ~ 150°C (TJ)

Vgs (Max) :

+6V, -4V

Input Capacitance (Ciss) (Max) @ Vds :

3200 pF @ 50 V

Power Dissipation (Max) :

-

Drive Voltage (Max Rds On, Min Rds On) :

5V

Package / Case :

7-PowerWQFN

Current - Continuous Drain (Id) @ 25°C :

101A (Ta)

FET Feature :

-

Product Status :

Active

Vgs(th) (Max) @ Id :

2.5V @ 14mA

Mounting Type :

Surface Mount

Rds On (Max) @ Id, Vgs :

1.8mOhm @ 50A, 5V

FET Type :

N-Channel
