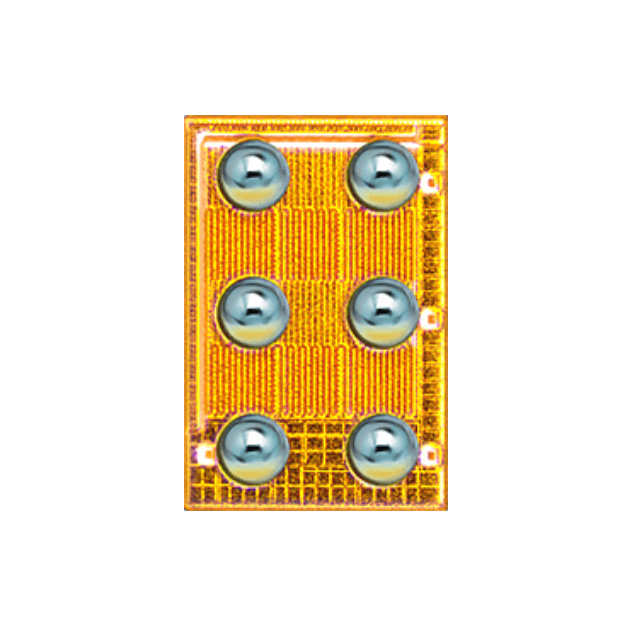

EPC2216
Or copy the link below:
- Mfr.Part #
- EPC2216
- Manufacturer
- EPC
- Package / Case
- Die
- Datasheet
- Download
- Description
- GANFET N-CH 15V 3.4A DIE
- Stock
- 46,192
- In Stock ：
- 46,192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPC
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Package / Case :
- Die
- FET Feature :
- Standard
- Rds On (Max) @ Id, Vgs :
- 26mOhm @ 1.5A, 5V
- Operating Temperature :
- -40°C~150°C TJ
- FET Type :
- N-Channel
- Vgs(th) (Max) @ Id :
- 1V @ 1mA
- Supplier Device Package :
- Die
- RoHS Status :
- ROHS3 Compliant
- Gate Charge (Qg) (Max) @ Vgs :
- 0.87nC @ 5V
- Drain to Source Voltage (Vdss) :
- 15V
- Drive Voltage (Max Rds On,Min Rds On) :
- 5V
- Current - Continuous Drain (Id) @ 25°C :
- 10mA Ta
- Series :
- Automotive, AEC-Q101, eGaN®
- Input Capacitance (Ciss) (Max) @ Vds :
- 118pF @ 7.5V
- Packaging :
- Tape and Reel (TR)
- Vgs (Max) :
- +6V, -4V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Datasheets
- EPC2216
N-Channel Tape & Reel (TR) 26mOhm @ 1.5A, 5V +6V, -4V 118pF @ 7.5V 0.87nC @ 5V 15V Die
EPC2216 Overview
A device's maximum input capacitance is 118pF @ 7.5V, but its input capacitance parameter, CI, is measured as the capacitance between the input terminals of the device with either input grounded.To operate this transistor, you need to apply a 15V drain to source voltage (Vdss).This device uses no drive voltage (5V) to reduce its overall power consumption.
EPC2216 Features
a 15V drain to source voltage (Vdss)
EPC2216 Applications
There are a lot of EPC
EPC2216 applications of single MOSFETs transistors.
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
- Lighting, Server, Telecom and UPS.
- DC-to-DC converters
