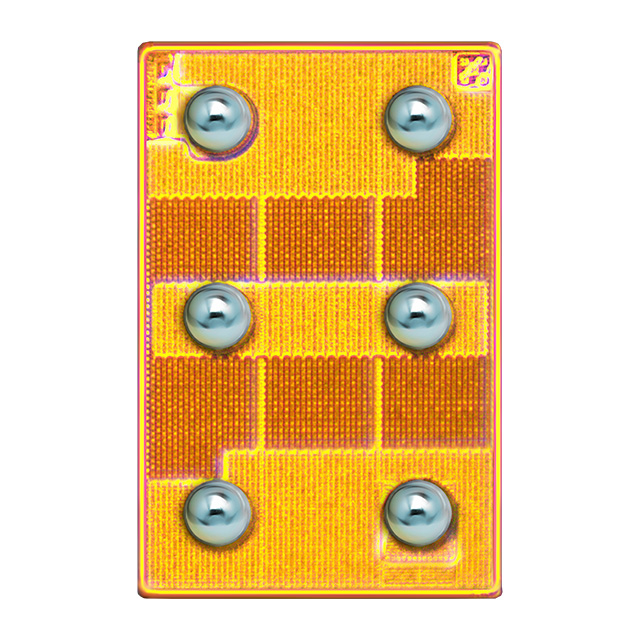

EPC2051
Or copy the link below:
- Mfr.Part #
- EPC2051
- Manufacturer
- EPC
- Package / Case
- Die
- Datasheet
- Download
- Description
- GANFET N-CH 100V 1.7A DIE
- Stock
- 10,845
- In Stock ：
- 10,845
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPC
- Product Category :
- Transistors - FETs, MOSFETs - Single
- FET Type :
- N-Channel
- Drain to Source Voltage (Vdss) :
- 100V
- Input Capacitance (Ciss) (Max) @ Vds :
- 258pF @ 50V
- Series :
- eGaN®
- Drive Voltage (Max Rds On,Min Rds On) :
- 5V
- Factory Lead Time :
- 10 Weeks
- Vgs(th) (Max) @ Id :
- 2.5V @ 1.5mA
- Vgs (Max) :
- +6V, -4V
- Operating Temperature :
- -40°C~150°C TJ
- Current - Continuous Drain (Id) @ 25°C :
- 1.7A
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gate Charge (Qg) (Max) @ Vgs :
- 2.1nC @ 5V
- Package / Case :
- Die
- Supplier Device Package :
- Die
- Mounting Type :
- Surface Mount
- Rds On (Max) @ Id, Vgs :
- 25mOhm @ 3A, 5V
- Datasheets
- EPC2051
N-Channel Tape & Reel (TR) 25mOhm @ 3A, 5V +6V, -4V 258pF @ 50V 2.1nC @ 5V 100V Die
EPC2051 Overview
The maximum input capacitance of this device is 258pF @ 50V, because the input capacitance of an op amp is defined as the difference between the input terminals with one input grounded.The drain-to-source voltage (Vdss) of this transistor needs to be at 100V in order to operate.Using drive voltage (5V), this device helps reduce its power consumption.
EPC2051 Features
a 100V drain to source voltage (Vdss)
EPC2051 Applications
There are a lot of EPC
EPC2051 applications of single MOSFETs transistors.
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
