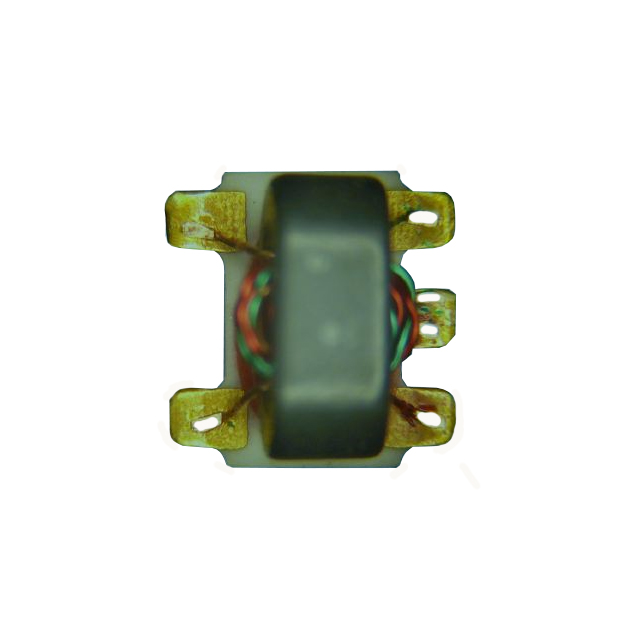

EMDC-13-2TR

Manufacturer :

MACOM Technology Solutions

Product Category :

RF Directional Coupler

Return Loss :

17dB

Max Operating Temperature :

85 °C

Pin Count :

5

Frequency :

5MHz ~ 1GHz

Construction :

COMPONENT

ELV :

Compliant

Series :

-

Package :

Digi-Reel?

Screening Level :

COMMERCIAL

Reach Compliance Code :

Compliant

Isolation :

-

Manufacturer :

MACOM

Packaging :

Tape and Reel

Input Power-Max (CW) :

23.98 dBm

Radiation Hardening :

No

Min Operating Temperature :

-20 °C

Coupler Type :

Standard

RoHS :

Compliant

Coupling Factor :

13 ± 1dB

Subcategory :

Filters

Operating Frequency-Min :

5 MHz

Operating Frequency-Max :

1000 MHz

Supplier Device Package :

SM-22

Applications :

GENERAL PURPOSE

Package Type :

SM-22

Product Type :

Signal Conditioning

Package / Case :

SM-22

Rad Hardened :

No

Product Category :

Signal Conditioning

Power - Max :

250mW

Insertion Loss :

-

Product :

Ohm Couplers

Base Product Number :

EMDC-13

Characteristic Impedance :

50 Ω

Product Status :

Active

Brand :

MACOM

Number of Pins :

22

RF/Microwave Device Type :

DIRECTIONAL COUPLER
