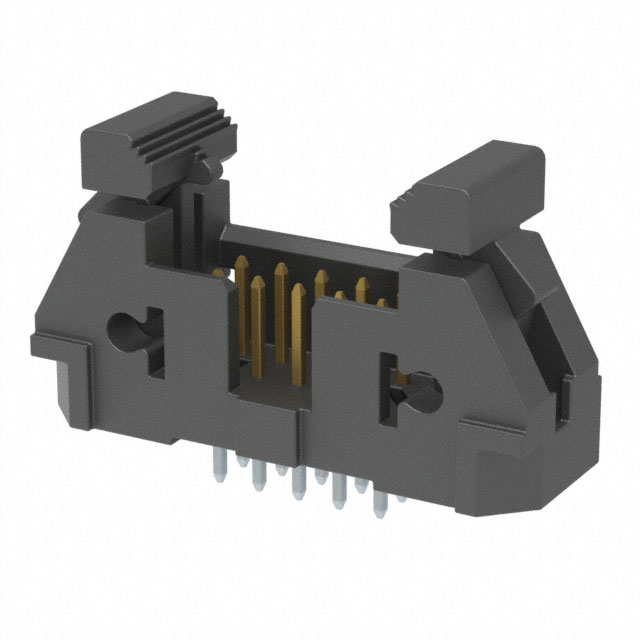

EJH-105-01-FM-D-TH

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Operating Temperature :

-55°C~125°C

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Contact Finish - Mating :

Gold

Contact Length - Post :

0.120 3.05mm

JESD-609 Code :

e3

Number of Positions Loaded :

All

Mixed Contacts :

No

Termination :

Solder

Number of Rows :

2

Contact Finish Thickness - Mating :

3.00μin 0.076μm

Moisture Sensitivity Level (MSL) :

Not Applicable

Style :

Board to Cable/Wire

Option :

GENERAL PURPOSE

Filter Feature :

No

Packaging :

Tube

Factory Lead Time :

3 Weeks

Shrouding :

Shrouded - 4 Wall

DIN Conformance :

No

Radiation Hardening :

No

IEC Conformance :

No

Feature :

Keying Slot

Number of Conductors :

ONE

Gender :

Male

Contact Finish - Post :

Tin

Mounting Type :

Through Hole

Insulation Color :

Black

Insulation Material :

Liquid Crystal Polymer (LCP)

Number of Positions :

10

Polarization Key :

POLARIZED HOUSING

Series :

EJH

Mount :

Through Hole

Contact Length - Mating :

0.225 5.72mm

Row Spacing - Mating :

0.100 (2.54mm)

Body Breadth :

0.39 inch

Contact Material :

Phosphor Bronze

Current Rating (Amps) :

3A

Fastening Type :

Latch Lock/Eject Hooks

Mating Contact Pitch :

0.1 inch

Insulation Height :

0.500 12.70mm

Number Of PCB Rows :

2

PCB Contact Pattern :

RECTANGULAR

Contact Type :

Male Pin

Connector Type :

Header

Pitch - Mating :

0.100 2.54mm

Pbfree Code :

yes

Body Length or Diameter :

1.194 inch

Reliability :

COMMERCIAL

Contact Shape :

Square
