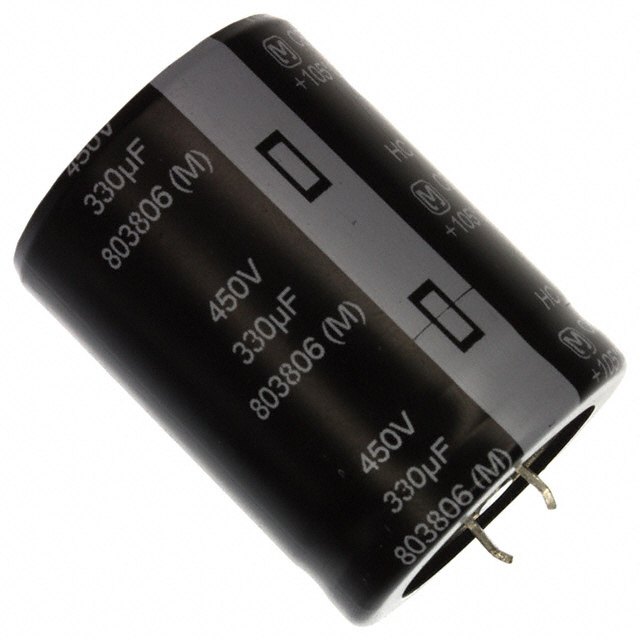

EET-HC2W331KF

Manufacturer :

Panasonic

Product Category :

Aluminum Electrolytic Capacitors

Capacitance :

330µF

Number of Pins :

2

Dissipation Factor :

15 %

Lead Pitch :

10mm

Test Frequency :

120Hz

Voltage - Rated DC :

450V

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Number of Terminations :

2

Lifetime @ Temp :

2000 Hrs @ 105°C

Series :

TS-HC

Tolerance :

±20%

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ESR (Equivalent Series Resistance) :

553mOhm @ 120Hz

Pbfree Code :

yes

Ripple Current :

1.24A

Lead Spacing :

0.394 10.00mm

JESD-609 Code :

e3

Dielectric Material :

ALUMINUM (WET)

Applications :

GENERAL PURPOSE

Package / Case :

Radial, Can - Snap-In

Terminal Finish :

Tin (Sn)

Diameter :

30mm

ECCN Code :

EAR99

Polarization :

Polar

Leakage Current :

1.1561mA

Published :

2005

Radiation Hardening :

No

Height Seated (Max) :

1.654 42.00mm

Ripple Current @ Low Frequency :

1.38A @ 120Hz

Ripple Current @ High Frequency :

1.932A @ 10kHz

Life (Hours) :

2000 hours

Operating Temperature :

-25°C~105°C

Mount :

Through Hole

Mounting Type :

Through Hole

Packaging :

Bulk

Size / Dimension :

1.181Dia 30.00mm

RoHS Status :

RoHS Compliant

Tan Delta :

0.15

Height :

45mm

Termination :

Snap in
