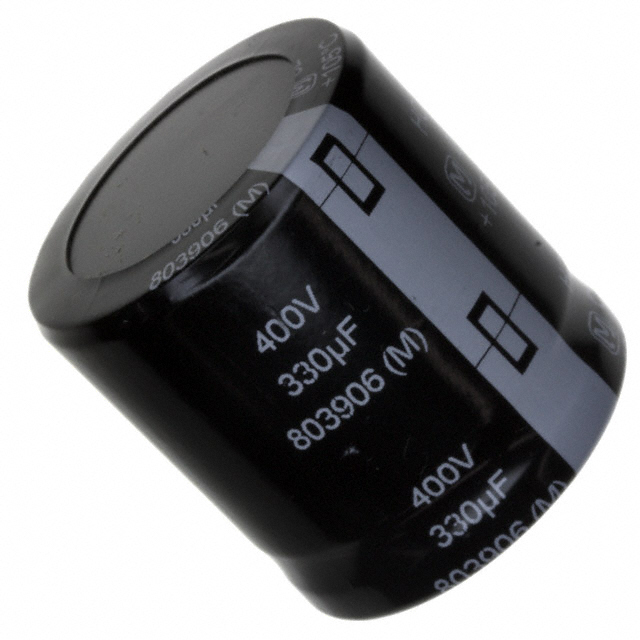

EET-HC2G331KF

Manufacturer :

Panasonic

Product Category :

Aluminum Electrolytic Capacitors

Package / Case :

Radial, Can - Snap-In

Mount :

Through Hole

Operating Temperature :

-25°C~105°C

ECCN Code :

EAR99

Ripple Current @ High Frequency :

2.016A @ 10kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifetime @ Temp :

2000 Hrs @ 105°C

Radiation Hardening :

No

Leakage Current :

1.09mA

Size / Dimension :

1.181Dia 30.00mm

Mounting Type :

Through Hole

Height :

35mm

Polarization :

Polar

Ripple Current :

1.44A

Number of Terminations :

2

RoHS Status :

RoHS Compliant

Applications :

GENERAL PURPOSE

Series :

TS-HC

Terminal Finish :

Tin (Sn)

Diameter :

30mm

Dissipation Factor :

15 %

Ripple Current @ Low Frequency :

1.44A @ 120Hz

Dielectric Material :

ALUMINUM (WET)

ESR (Equivalent Series Resistance) :

553mOhm @ 120Hz

Test Frequency :

120Hz

Voltage - Rated DC :

400V

Height Seated (Max) :

1.260 32.00mm

Pbfree Code :

yes

Lead Spacing :

0.394 10.00mm

Packaging :

Bulk

Capacitance :

330µF

Termination :

Snap in

Published :

2005

Number of Pins :

2

Life (Hours) :

2000 hours

Lead Pitch :

10mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Tan Delta :

0.15

Tolerance :

±20%

JESD-609 Code :

e3
