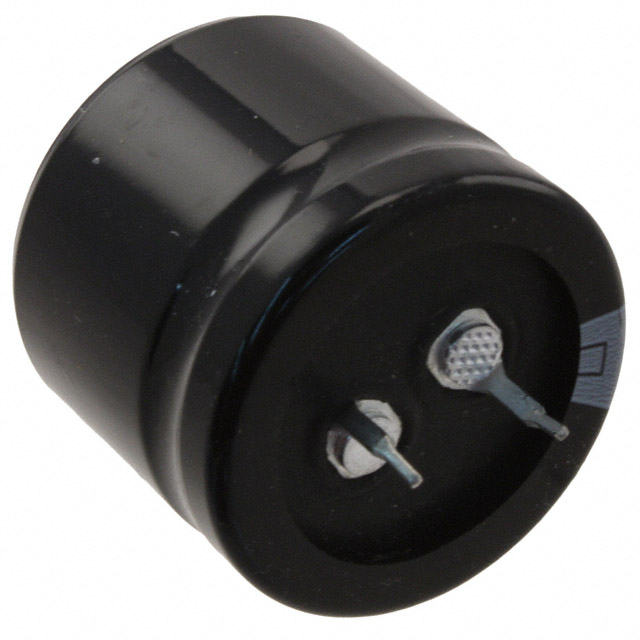

ECO-S2GB331DA

Manufacturer :

Panasonic

Product Category :

Aluminum Electrolytic Capacitors

Ripple Current :

1.35A

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Lead Pitch :

10mm

Mount :

Through Hole

Leakage Current :

1.08995mA

Mounting Type :

Through Hole

Dissipation Factor :

15 %

Radiation Hardening :

No

Lifetime @ Temp :

3000 Hrs @ 105°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Ripple Current @ Low Frequency :

1.35A @ 120Hz

Polarization :

Polar

Dielectric Material :

ALUMINUM (WET)

Terminal Finish :

Tin (Sn)

Series :

TS-HB

Termination :

Snap in

Capacitance :

330µF

Lead Diameter :

800 µm

Height Seated (Max) :

1.772 45.00mm

Number of Terminations :

2

Voltage - Rated DC :

400V

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Tolerance :

±20%

Ripple Current @ High Frequency :

1.539A @ 100kHz

Lead Spacing :

0.394 10.00mm

Test Frequency :

120Hz

Height :

45mm

Size / Dimension :

1.181Dia 30.00mm

Number of Pins :

2

Life (Hours) :

3000 hours

Published :

2005

Diameter :

30mm

Tan Delta :

0.15

Applications :

GENERAL PURPOSE

Resistance :

502mOhm

Package / Case :

Radial, Can - Snap-In

JESD-609 Code :

e3

ESR (Equivalent Series Resistance) :

502mOhm @ 120Hz

Operating Temperature :

-25°C~105°C
