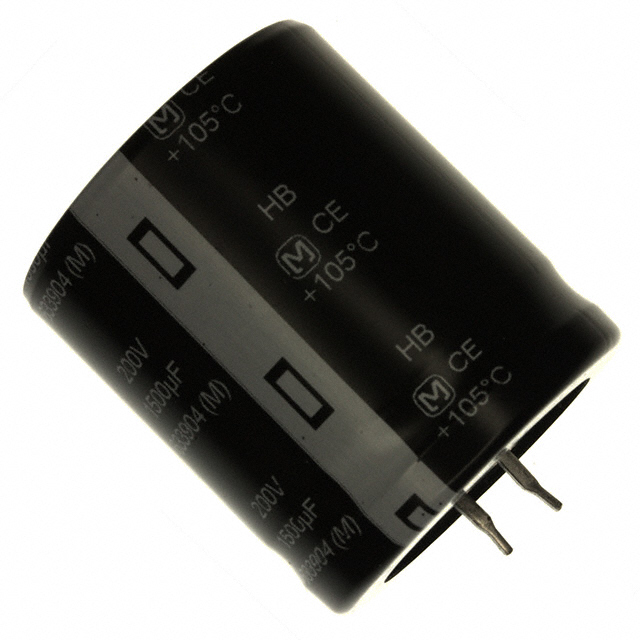

ECO-S2DB152EA
Or copy the link below:
- Mfr.Part #
- ECO-S2DB152EA
- Manufacturer
- Panasonic
- Package / Case
- Radial, Can - Snap-In
- Datasheet
- Download
- Description
- CAP ALUM 1500UF 20% 200V SNAP
- Stock
- 46,909
- In Stock ：
- 46,909
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Aluminum Electrolytic Capacitors
- Mount :
- Through Hole
- Capacitance :
- 1500μF
- Lifetime @ Temp :
- 3000 Hrs @ 105°C
- Ripple Current @ High Frequency :
- 2.85A @ 100kHz
- Lead Pitch :
- 10mm
- Number of Pins :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Termination :
- Snap in
- Published :
- 2005
- Resistance :
- 155mOhm
- Height Seated (Max) :
- 1.575 40.00mm
- Test Frequency :
- 120Hz
- Ripple Current @ Low Frequency :
- 2.5A @ 120Hz
- Tolerance :
- ±20%
- Diameter :
- 35mm
- Height :
- 40mm
- Series :
- TS-HB
- Voltage - Rated :
- 200V
- Applications :
- GENERAL PURPOSE
- ESR (Equivalent Series Resistance) :
- 155mOhm @ 120Hz
- Min Operating Temperature :
- -40°C
- Max Operating Temperature :
- 105°C
- Radiation Hardening :
- No
- Lead Spacing :
- 0.394 10.00mm
- Length :
- 40mm
- Operating Temperature :
- -40°C~105°C
- Polarization :
- Polar
- Polarity :
- Polar
- Dissipation Factor :
- 15 %
- Package / Case :
- Radial, Can - Snap-In
- Ripple Current :
- 2.5A
- Life (Hours) :
- 3000 hours
- Voltage - Rated DC :
- 200V
- Size / Dimension :
- 1.378Dia 35.00mm
- Datasheets
- ECO-S2DB152EA
ECO-S2DB152EA Documents
TS-HB 1500μF Capacitor ±20% Bulk Through Hole 2.5A 1.378Dia 35.00mm -40°C~105°C Polar 10mm Radial, Can - Snap-In
