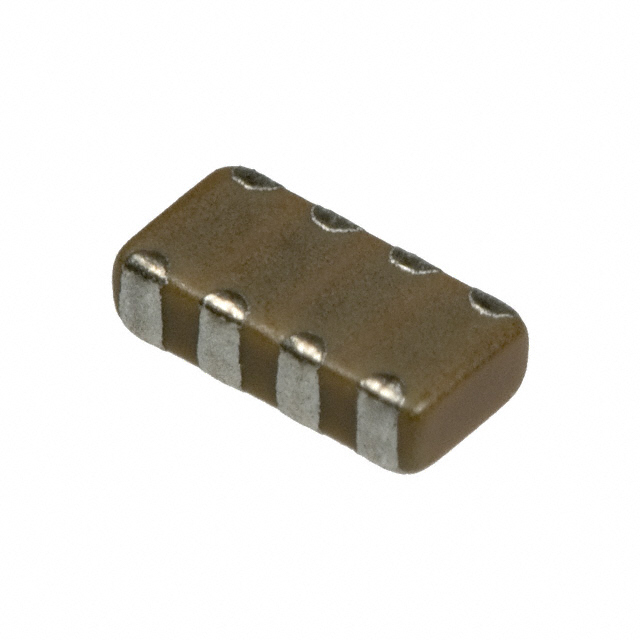

ECJ-RVB1H222M

Manufacturer :

Panasonic

Product Category :

Capacitor Networks, Arrays

Package / Case :

1206 (3216 Metric)

ECCN Code :

EAR99

Operating Temperature (Max) :

125°C

Series :

ECJ-R

Dielectric Material :

Ceramic

Case Code (Metric) :

3216

Mount :

Surface Mount

Case Code (Imperial) :

1206

Length :

3.2mm

Capacitance :

2200pF

Reach Compliance Code :

Unknown

Mounting Type :

Surface Mount

Terminal Pitch :

0.8mm

Circuit Type :

Isolated

Number of Functions :

4

Packing Method :

TR, Paper, 7 Inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Terminal Shape :

WRAPAROUND

Terminal Finish :

Tin

Voltage - Rated DC :

50V

Capacitor Type :

ARRAY/NETWORK CAPACITOR

Temperature Characteristics Code :

X7R

Tolerance :

±20%

Operating Temperature (Min) :

-55°C

Temperature Coefficient :

X7R

Height Seated (Max) :

0.037 0.95mm

Number of Elements :

1

Multilayer :

yes

Size / Dimension :

0.126Lx0.063W 3.20mmx1.60mm

Width :

1.6mm

RoHS Status :

RoHS Compliant

Packaging :

Tape and Reel (TR)

Lead Free :

Contains Lead

Published :

2008

Number of Capacitors :

4

Number of Terminations :

8
