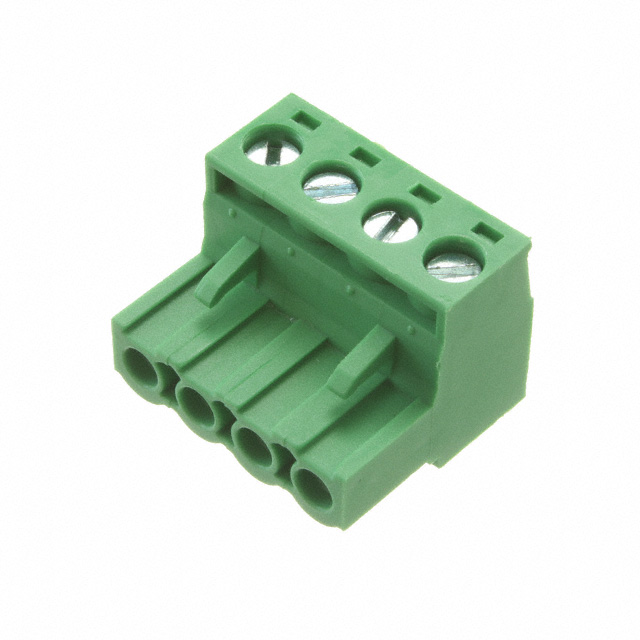

EBHA-04-D
Or copy the link below:
- Mfr.Part #
- EBHA-04-D
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- EURO BLOCK 4P
- Stock
- 1,103
- In Stock ：
- 1,103
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Plugs and Sockets
- Screw Size :
- M3
- Number of Positions :
- 4
- Type :
- Plug, Female Sockets
- Wire Gauge or Range - mm² :
- 2.5mm2
- Insulation Height :
- 0.594 15.09mm
- Series :
- EB
- Current - UL :
- 15A
- Contact Mating Finish :
- Nickel
- Operating Temperature :
- -40°C~105°C
- Feature :
- Retention Latches (Non-Wire Side)
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 9 Weeks
- Color :
- Green
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Pitch :
- 0.200 5.08mm
- Voltage - UL :
- 300V
- Packaging :
- Bulk
- Number of Levels :
- 1
- Plug Wire Entry :
- 180°
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Strip Length :
- 7-8mm
- Termination Style :
- Screw - Leaf Spring, Wire Guard
- Contact Material :
- Phosphor Bronze
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge or Range - AWG :
- 14-28 AWG
- Torque - Screw :
- 0.5 Nm (4.4 Lb-In)
- Datasheets
- EBHA-04-D
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets EB Polyamide (PA66), Nylon 6/6 Nickel Phosphor Bronze
EBHA-04-D Overview
There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number EB belongs to the EB Series.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.This device operates at a temperature of -40°C~105°C.There are a lot of similarities between this part and other Plug, Female Sockets products.
EBHA-04-D Features
EB series
EBHA-04-D Applications
There are a lot of Adam Tech
EBHA-04-D Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
