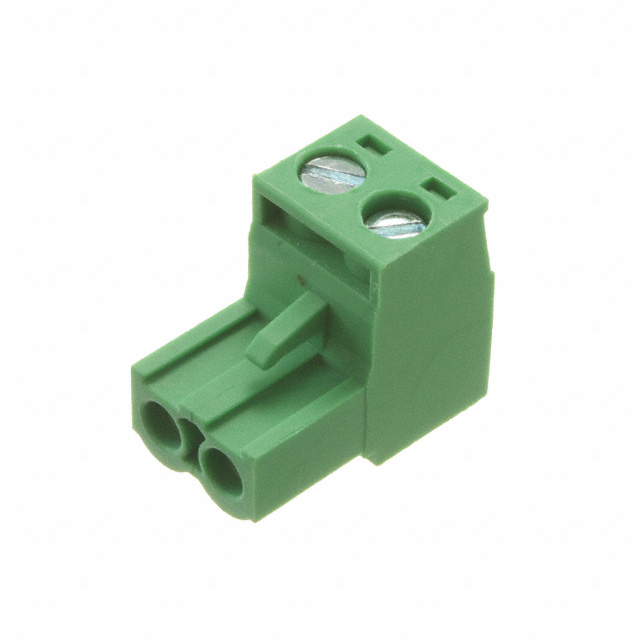

EBHA-02-C

Manufacturer :

Adam Tech

Product Category :

Headers, Plugs and Sockets

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - UL :

15A

Color :

Green

Series :

EB

Orientation :

Straight

Voltage - UL :

300V

Wire Gauge or Range - mm² :

2.5mm2

Mounting Type :

Free Hanging (In-Line)

Insulation Height :

0.594 15.09mm

Pitch :

0.197 5.00mm

Operating Temperature :

-40°C~105°C

Type :

Plug, Female Sockets

Feature :

Retention Latches (Non-Wire Side)

Wire Gauge or Range - AWG :

14-28 AWG

Contact Mating Finish :

Nickel

Plug Wire Entry :

180°

Factory Lead Time :

9 Weeks

Contact Material :

Phosphor Bronze

Number of Levels :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Torque - Screw :

0.5 Nm (4.4 Lb-In)

Termination Style :

Screw - Leaf Spring, Wire Guard

Screw Size :

M3

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Wire Strip Length :

7-8mm

Material Flammability Rating :

UL94 V-0

Number of Positions :

2
