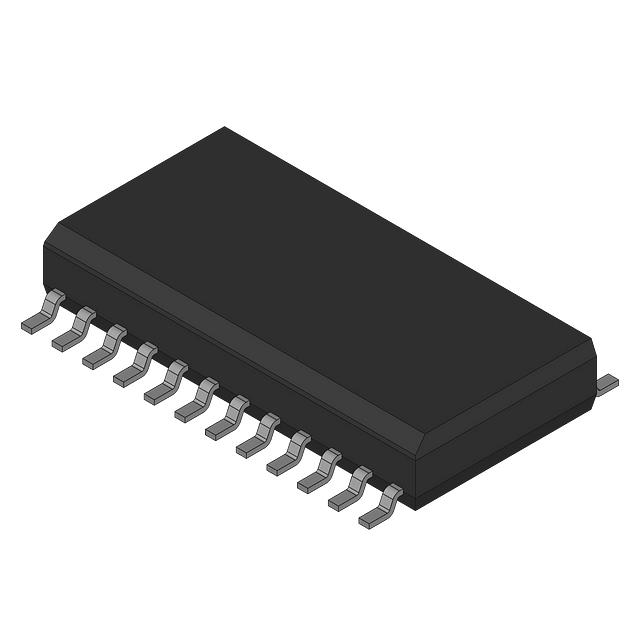

DS8934WMX

Manufacturer :

National Semiconductor

Product Category :

Drivers, Receivers, Transceivers

Package Shape :

RECTANGULAR

Terminal Form :

Gull wing

Reach Compliance Code :

Unknown

Terminal Position :

Dual

Temperature Grade :

COMMERCIAL

Number of Functions :

1

Seated Height-Max :

2.65 mm

Series :

*

Surface Mount :

yes

JESD-30 Code :

R-PDSO-G24

Width :

7.5 mm

Interface IC Type :

LINE TRANSCEIVER

Receive Delay-Max :

75 ns

Input Characteristics :

Schmitt Trigger

Package :

Bulk

Length :

15.4 mm

Receiver Number of Bits :

3

Interface Standard :

EIA-232-E; V.10; V.28; EIA-423-B; V.34

Number of Terminals :

24

Pin Count :

24

Differential Output :

No

Transmit Delay-Max :

300 ns

Terminal Pitch :

1.27 mm

Supply Voltage1-Max :

-5.25 V

Driver Number of Bits :

5

Supply Voltage1-Min :

-4.75 V

Supply Voltage1-Nom :

-5 V

Qualification Status :

COMMERCIAL

Product Status :

Active
