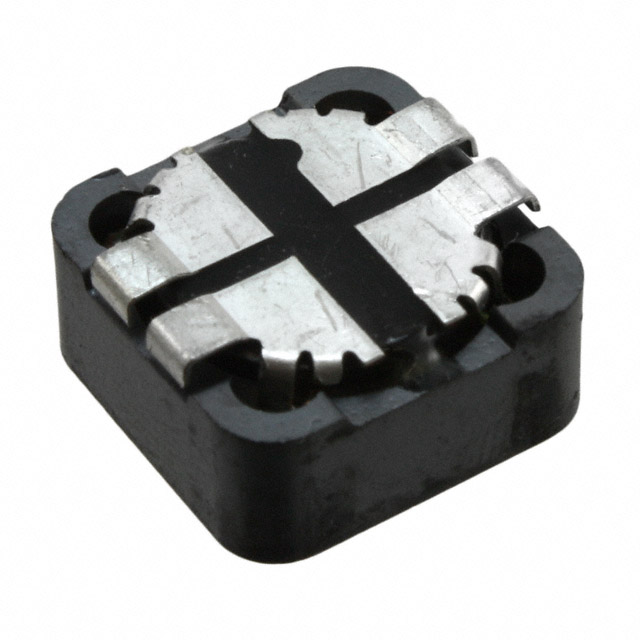

DRQ125-3R3-R
Or copy the link below:
- Mfr.Part #
- DRQ125-3R3-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 3.084UH SMD
- Stock
- 1,015
- In Stock ：
- 1,015
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Arrays, Signal Transformers
- Height :
- 0.236 6.00mm
- Inductance - Parallel :
- 3.08 μH
- Operating Temperature :
- -40°C~125°C
- Tolerance :
- ±20%
- RoHS Status :
- ROHS3 Compliant
- Number of Coils :
- 2
- Length :
- 12.4968mm
- Number of Pins :
- 4
- Current Rating - Series :
- 4.63A
- Current :
- 4.63A
- Mounting Type :
- Surface Mount
- Test Frequency :
- 100kHz
- Inductance :
- 3.3 µH
- Resistance :
- 6.3mOhm
- DC Resistance (DCR) - Series :
- 25.3mOhm
- Max DC Current :
- 12.7A
- Max Operating Temperature :
- 125°C
- Mount :
- Surface Mount
- Current Saturation - Series :
- 6.35A
- Shielding :
- Shielded
- Factory Lead Time :
- 9 Weeks
- Width :
- 12.4968mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Size / Dimension :
- 0.492Lx0.492W 12.50mmx12.50mm
- Current Rating - Parallel :
- 9.26A
- Inductance - Connected In Series :
- 12.34μH
- Self Resonant Frequency :
- 100kHz
- Weight :
- 4.082331g
- Current Saturation - Parallel :
- 12.7A
- Lead Free :
- Lead Free
- Military Standard :
- Not
- Min Operating Temperature :
- -40°C
- Inductance - Series :
- 12.34 μH
- Termination :
- SMD/SMT
- Current Rating :
- 9.36A
- Published :
- 2011
- Series :
- DRQ
- Package / Case :
- Nonstandard
- Inductance - Connected In Parallel :
- 3.084μH
- Packaging :
- Tape and Reel (TR)
- DC Resistance (DCR) - Parallel :
- 6.3mOhm
- Core Material :
- Ferrite
- Depth :
- 12.5mm
- Datasheets
- DRQ125-3R3-R
