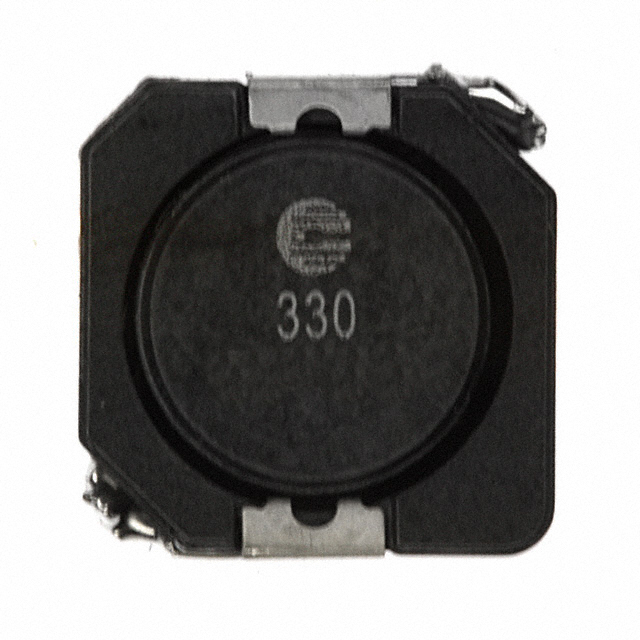

DR1050-330-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Length :

10.5mm

Width :

10.287mm

Number of Pins :

2

Max Operating Temperature :

125°C

Lead Free :

Lead Free

Current Rating :

2.56A

Depth :

10.3mm

Height :

5mm

Lead Pitch :

7.3mm

Inductance :

33μH

Inductance Tolerance :

30%

Weight :

5.000005g

Mount :

Surface Mount

Height Seated (Max) :

0.197 5.00mm

REACH SVHC :

No SVHC

Shielding :

Shielded

Factory Lead Time :

7 Weeks

Type :

Wirewound

Min Operating Temperature :

-40°C

Operating Temperature :

-40°C~125°C

RMS Current (Irms) :

2.56A

DC Current :

2.56A

RoHS Status :

ROHS3 Compliant

Tolerance :

±30%

Series :

DR1050

Packaging :

Tape and Reel (TR)

Inductance Frequency - Test :

100kHz

Termination :

SMD/SMT

Self Resonant Frequency :

1MHz

Test Frequency :

100kHz

Material - Core :

Ferrite

DC Resistance (DCR) :

71.9mOhm Max

Size / Dimension :

0.413Lx0.406W 10.50mmx10.30mm

Current Rating (Amps) :

2.56A

Mounting Type :

Surface Mount

Composition :

Wirewound

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max DC Current :

2.56A

Military Standard :

Not

Package / Case :

Nonstandard

Current - Saturation :

2.5A

Radiation Hardening :

No

Published :

2008
