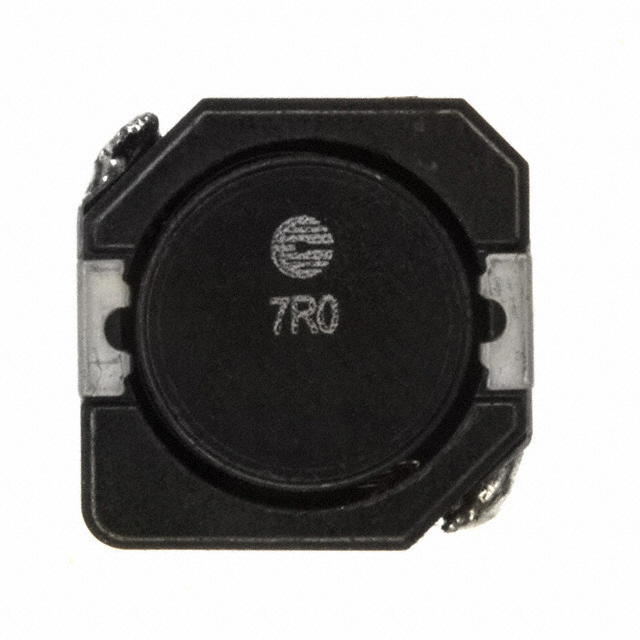

DR1040-7R0-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Inductance Frequency - Test :

100kHz

Max Operating Temperature :

125°C

Current Rating (Amps) :

4.5A

Width :

10.287mm

Max DC Current :

4.8A

Number of Pins :

2

Test Frequency :

100kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Military Standard :

Not

Package / Case :

Nonstandard

Height Seated (Max) :

0.157 4.00mm

Operating Temperature :

-40°C~125°C

Shielding :

Shielded

DC Current :

4.5A

Lead Free :

Lead Free

DC Resistance (DCR) :

20mOhm Max

Composition :

Wirewound

Min Operating Temperature :

-40°C

Size / Dimension :

0.413Lx0.406W 10.50mmx10.30mm

Inductance Tolerance :

30%

REACH SVHC :

Unknown

Series :

DR1040

Depth :

10.3mm

Current Rating :

4.5A

Weight :

5.000005g

Tolerance :

±30%

Material - Core :

Ferrite

Termination :

SMD/SMT

Type :

Wirewound

Mount :

Surface Mount

Inductance :

7μH

Factory Lead Time :

12 Weeks

RMS Current (Irms) :

4.5A

Current - Saturation :

4.8A

Height :

4mm

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Published :

2007

Length :

10.5mm

Packaging :

Tape and Reel (TR)

Self Resonant Frequency :

1MHz

Mounting Type :

Surface Mount
