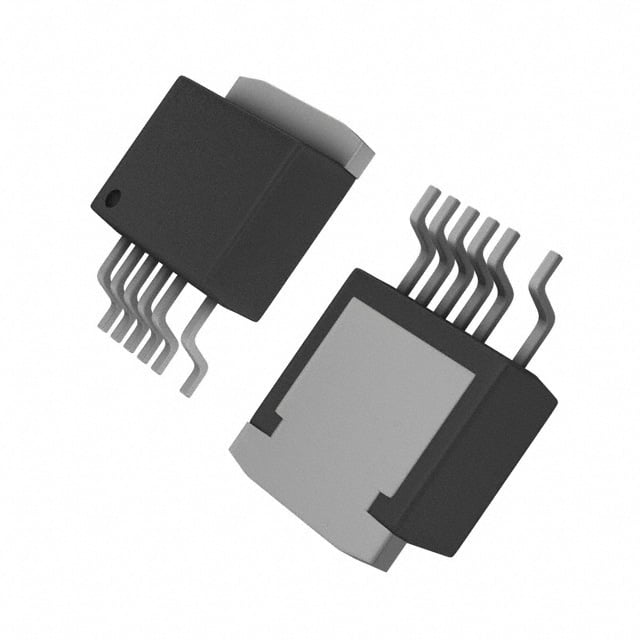

DPA426R-TL

Manufacturer :

Power Integrations

Product Category :

Special Purpose Regulators

JESD-609 Code :

e0

Peak Reflow Temperature (Cel) :

225

Terminal Finish :

Tin/Lead (Sn/Pb)

Mounting Type :

Surface Mount

Published :

2004

Number of Outputs :

1

Pin Count :

4

Contact Plating :

Lead, Tin

Voltage - Input :

16V~75V

Output Power :

100W

Packaging :

Tape and Reel (TR)

Lead Free :

Contains Lead

Control Technique :

PULSE WIDTH MODULATION

Operating Temperature :

-40°C~125°C

Factory Lead Time :

4 Weeks

Radiation Hardening :

No

Terminal Position :

Single

Mount :

Surface Mount

Time@Peak Reflow Temperature-Max (s) :

30

Switching Frequency-Max :

425kHz

Control Mode :

VOLTAGE-MODE

Pbfree Code :

No

ECCN Code :

EAR99

Width :

8.405mm

RoHS Status :

Non-RoHS Compliant

Voltage - Output :

220V

Package / Case :

TO-263-7, D2Pak (6 Leads + Tab), TO-263CB

Output Current-Max :

9.6A

JESD-30 Code :

R-PSSO-G6

Terminal Form :

Gull wing

Number of Terminations :

6

Number of Functions :

1

Series :

DPA-Switch®

Analog IC - Other Type :

SWITCHING REGULATOR

Applications :

Converter, Power Over Ethernet and Telecom Applications

Height Seated (Max) :

4.95mm

Input Voltage-Nom :

35V

Moisture Sensitivity Level (MSL) :

4 (72 Hours)

Switcher Configuration :

Single
