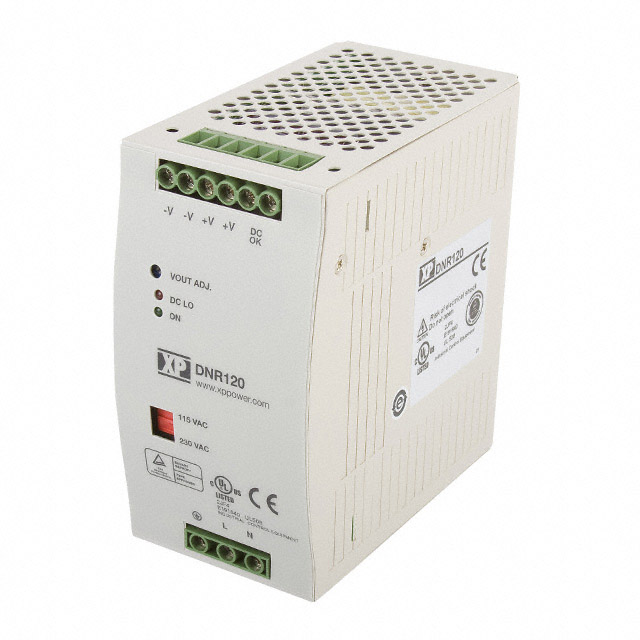

DNR120AS12-I

Manufacturer :

XP Power

Product Category :

Max Input Voltage :

264V

Output Voltage :

12V

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Current - Output 1 :

10A

REACH SVHC :

No SVHC

Mounting Type :

DIN Rail

Voltage - Isolation :

3kV

Efficiency :

72%

Series :

DNR (120W)

Width :

63.5mm

Type :

Enclosed

Package / Case :

120

Output Current :

10A

Moisture Sensitivity Level (MSL) :

Not Applicable

Published :

2008

Factory Lead Time :

21 Weeks

Max Output Current :

10A

Output Power :

120W

Protections :

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

Operating Temperature :

-35°C~70°C With Derating

Weight :

630g

Nominal Output Voltage :

12V

RoHS Status :

ROHS3 Compliant

Min Input Voltage (AC) :

90V

Mount :

DIN Rail

Approval Agency :

CE

Height :

142mm

Min Input Voltage :

90V

Max Voltage Rating (AC) :

264V

Max Output Power :

120W

Max Power Dissipation :

120W

Number of Outputs :

1

Power Rating :

120W

Max Input Voltage (AC) :

264V

Size / Dimension :

4.57Lx2.50W x 4.92 H 116.0mmx63.5mmx125.0mm

Minimum Load Required :

No

Feature :

Adjustable Output, DC Input Capable, Universal Input

Voltage - Input :

90V~132VAC 180V~264VAC
