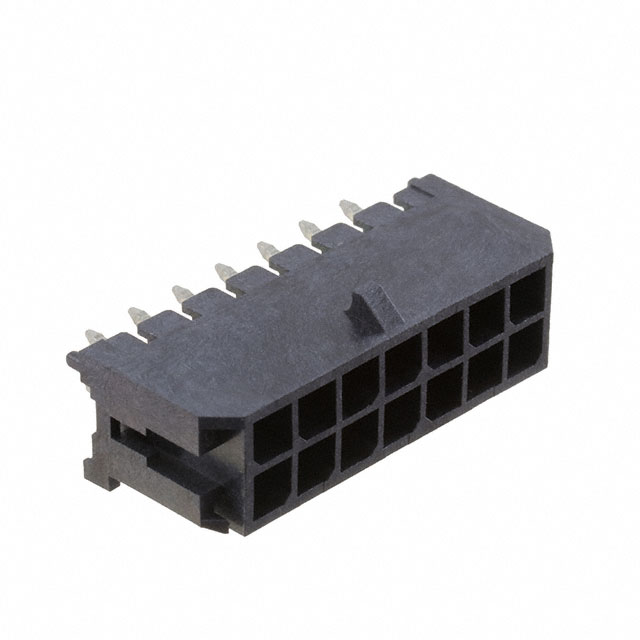

DML-14-A-V-T-A
Or copy the link below:
- Mfr.Part #
- DML-14-A-V-T-A
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 3MM
- Stock
- 449
- In Stock ：
- 449
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- Body Depth :
- 0.39 inch
- JESD-609 Code :
- e3
- Contact Material :
- Brass
- Body Breadth :
- 0.345 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Empty Shell :
- No
- Connector Type :
- Header
- Filter Feature :
- No
- Number of Conductors :
- ONE
- Voltage - Rated :
- 250V
- Operating Temperature :
- -45°C~125°C
- Feature :
- Board Guide
- Dielectric Withstanding Voltage :
- 1500VAC V
- Termination :
- Kinked Pin, Solder
- IEC Conformance :
- No
- Contact Length - Post :
- 0.125 3.18mm
- Lead Free :
- Lead Free
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Shell Material :
- POLYAMIDE46
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Factory Lead Time :
- 9 Weeks
- Fastening Type :
- Locking Ramp
- Number of Rows :
- 2
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.118 3.00mm
- Reference Standard :
- UL, CSA
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Positions :
- 14
- Series :
- DML
- Packaging :
- Bulk
- Mixed Contacts :
- No
- RoHS Status :
- ROHS3 Compliant
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- UL Flammability Code :
- 94V-0
- Contact Type :
- Male Pin
- Insulation Color :
- Black
- Contact Resistance :
- 10MOhm
- Contact Finish - Mating :
- Tin
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.390 9.91mm
- Insulation Material :
- Thermoplastic
- Datasheets
- DML-14-A-V-T-A
DML-14-A-V-T-A Documents
DML Series 2-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Thermoplastic 14-Position Board to Cable/Wire 0.390 9.91mm Height
DML-14-A-V-T-A Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the DML Series, it can be found in this category.With its Board Guide feature, it is more powerful in many ways.The device is operating at -45°C~125°C Operating Temperature.
DML-14-A-V-T-A Features
DML series
DML-14-A-V-T-A Applications
There are a lot of Adam Tech
DML-14-A-V-T-A Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
