DML-12-A-V-T-A

Share

Or copy the link below:

Mfr.Part #
DML-12-A-V-T-A
Manufacturer
Adam Tech
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 12POS 3MM
Stock
487
In Stock :
487

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Adam Tech
Product Category :
Headers, Male Pins
MIL Conformance :
No
Number of Positions Loaded :
All
Voltage - Rated :
250V
Contact Resistance :
10MOhm
Packaging :
Bulk
Feature :
Board Guide
IEC Conformance :
No
Connector Type :
Header
Termination :
Kinked Pin, Solder
Mounting Type :
Through Hole
DIN Conformance :
No
Mixed Contacts :
No
Series :
DML
Filter Feature :
No
Factory Lead Time :
9 Weeks
Reference Standard :
UL, CSA
Contact Material :
Brass
Material Flammability Rating :
UL94 V-0
RoHS Status :
ROHS3 Compliant
Contact Type :
Male Pin
Contact Length - Post :
0.125 3.18mm
Body Depth :
0.39 inch
Insulation Color :
Black
Number of Conductors :
ONE
JESD-609 Code :
e3
Body Breadth :
0.345 inch
Empty Shell :
No
Current Rating (Amps) :
Varies by WireGAuge
Shell Material :
POLYAMIDE46
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Shrouding :
Shrouded - 4 Wall
Row Spacing - Mating :
0.118 (3.00mm)
Pitch - Mating :
0.118 3.00mm
Insulation Material :
Thermoplastic
Style :
Board to Cable/Wire
Reliability :
COMMERCIAL
Insulation Height :
0.390 9.91mm
Operating Temperature :
-45°C~125°C
Dielectric Withstanding Voltage :
1500VAC V
Number of Positions :
12
UL Flammability Code :
94V-0
Number of Rows :
2
Contact Shape :
Square
Option :
GENERAL PURPOSE
Contact Finish - Mating :
Tin
Fastening Type :
Locking Ramp
Introducing Headers, Male Pins Adam Tech DML-12-A-V-T-A from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-45°C~125°C, DML-12-A-V-T-A pinout, DML-12-A-V-T-A datasheet PDF, DML-12-A-V-T-A amp .Beyond Headers, Male Pins Adam Tech DML-12-A-V-T-A ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

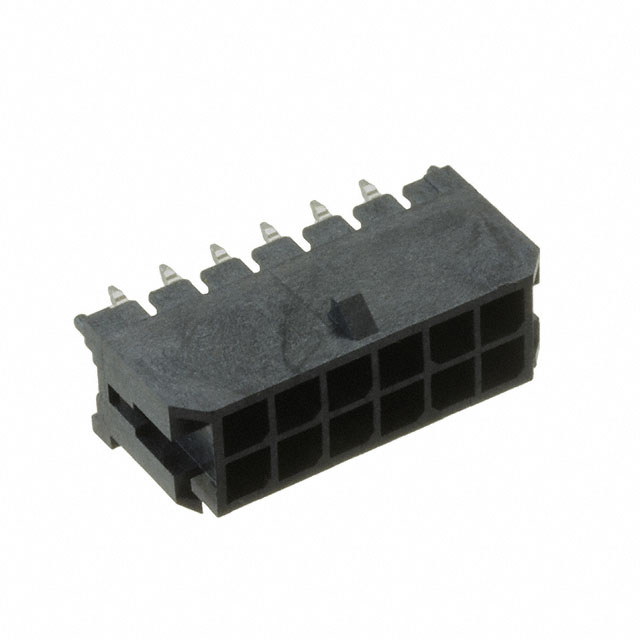

Adam Tech DML-12-A-V-T-A


DML Series 2-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Thermoplastic 12-Position Board to Cable/Wire 0.390 9.91mm Height

DML-12-A-V-T-A Overview


Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the DML Series.Several benefits come from the Board Guide feature.Devices operate at -45°C~125°C operating temperatures.

DML-12-A-V-T-A Features


DML series


DML-12-A-V-T-A Applications


There are a lot of Adam Tech
DML-12-A-V-T-A Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
