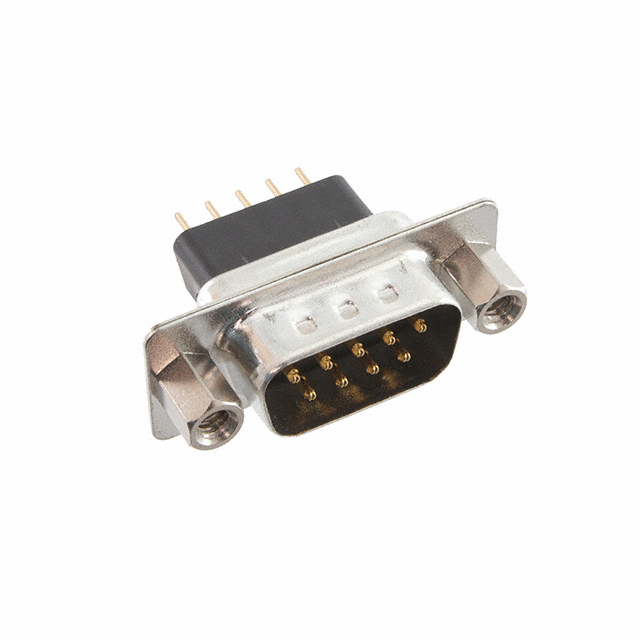

DE09-PE-1-JS
Or copy the link below:
- Mfr.Part #
- DE09-PE-1-JS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9POS VERT SLDR
- Stock
- 183
- In Stock ：
- 183
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Contact Finish Thickness :
- Flash
- Current Rating (Amps) :
- 5A
- Packaging :
- Tray
- Material Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1000VAC V
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Connector Type :
- Plug, Male Pins
- Insulation Resistance :
- 5000000000Ohm
- Series :
- DPE
- Mounting Option 2 :
- JACKSCREW
- Shell Size, Connector Layout :
- 1 DE E
- Connector Style :
- D-Sub
- Termination :
- Solder
- Number of Positions :
- 9
- Shell Material, Finish :
- Steel, Tin Plated
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- Contact Style :
- RND PIN-SKT
- Contact Finish :
- Gold
- Factory Lead Time :
- 9 Weeks
- Feature :
- Grounding Indents
- RoHS Status :
- ROHS3 Compliant
- Contact Pattern :
- STAGGERED
- Operating Temperature :
- -65°C~125°C
- Reference Standard :
- UL, CSA
- Contact Material :
- Phosphor Bronze
- Total Number of Contacts :
- 9
- Color :
- Black
- Voltage - Rated :
- 250VAC
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Number Of PCB Rows :
- 2
- PCB Contact Pattern :
- STAGGERED
- Body Depth :
- 0.464 inch
- Mounting Type :
- Through Hole
- Datasheets
- DE09-PE-1-JS
DE09-PE-1-JS Documents
DPE Series D-Sub Plug, Male Pins 9-Position Solder 1 DE E Through Hole Phosphor Bronze Gold Steel, Tin Plated
DE09-PE-1-JS Overview
This product is packaged in a Plug, Male Pins box.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number DPE belongs to the DPE Series.In many ways, it is more powerful due to its Grounding Indents feature.This device operates at a temperature of -65°C~125°C.
DE09-PE-1-JS Features
DPE series
DE09-PE-1-JS Applications
There are a lot of Adam Tech
DE09-PE-1-JS D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
