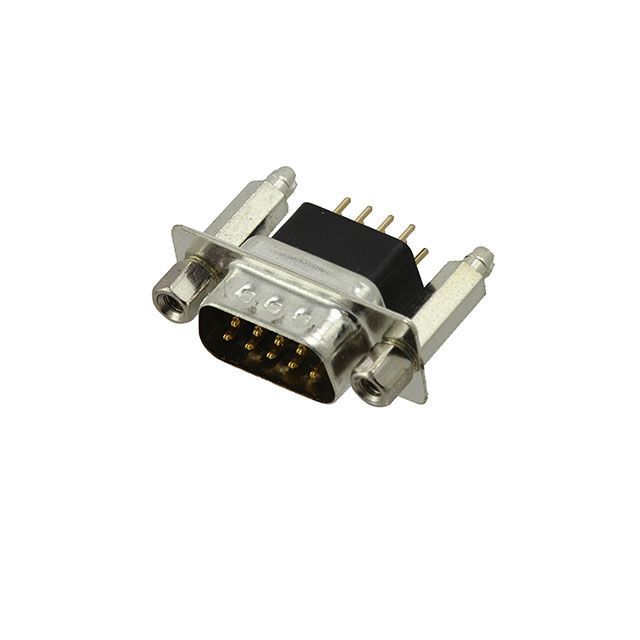

DE09-PE-1-BL-JS
Or copy the link below:
- Mfr.Part #
- DE09-PE-1-BL-JS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9POS VERT SLDR
- Stock
- 2,903
- In Stock ：
- 2,903
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Number Of PCB Rows :
- 2
- Color :
- Black
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 2
- Number of Positions :
- 9
- Body/Shell Style :
- Receptacle
- Shell Size, Connector Layout :
- 1 DE E
- Contact Finish Thickness :
- Flash
- Reference Standard :
- UL, CSA
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 9 Weeks
- PCB Contact Pattern :
- STAGGERED
- Dielectric Withstanding Voltage :
- 1000VAC V
- Connector Type :
- Plug, Male Pins
- Additional Feature :
- RoHS Compliant
- Total Number of Contacts :
- 9
- Length - Termination :
- 0.157 inch
- Mounting Type :
- Through Hole
- Feature :
- Board Lock, Grounding Indents
- Shell Material, Finish :
- Steel, Tin Plated
- Reliability :
- COMMERCIAL
- Voltage - Rated :
- 250VAC
- Contact Style :
- RND PIN-SKT
- Shell Finish :
- Tin
- Contact Finish :
- Gold
- Termination :
- Solder
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Connector Style :
- D-Sub
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Operating Temperature :
- -65°C~125°C
- Mounting Option 2 :
- JACKSCREW
- Packaging :
- Tray
- Series :
- DPE
- Contact Pattern :
- STAGGERED
- Insulation Resistance :
- 5000000000Ohm
- Current Rating (Amps) :
- 5A
- Contact Material :
- Phosphor Bronze
- Flange Feature :
- Board Side (4-40); Mating Side, Female Screwlock (4-40)
- Datasheets
- DE09-PE-1-BL-JS
DPE Series D-Sub Plug, Male Pins 9-Position Solder 1 DE E Through Hole Phosphor Bronze Gold Steel, Tin Plated
DE09-PE-1-BL-JS Overview
The connector type Plug, Male Pins refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the DPE Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.Its Board Lock, Grounding Indents feature renders it more powerful in many ways.The device runs in -65°C~125°C Operating Temperature.
DE09-PE-1-BL-JS Features
DPE series
DE09-PE-1-BL-JS Applications
There are a lot of Adam Tech
DE09-PE-1-BL-JS D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
