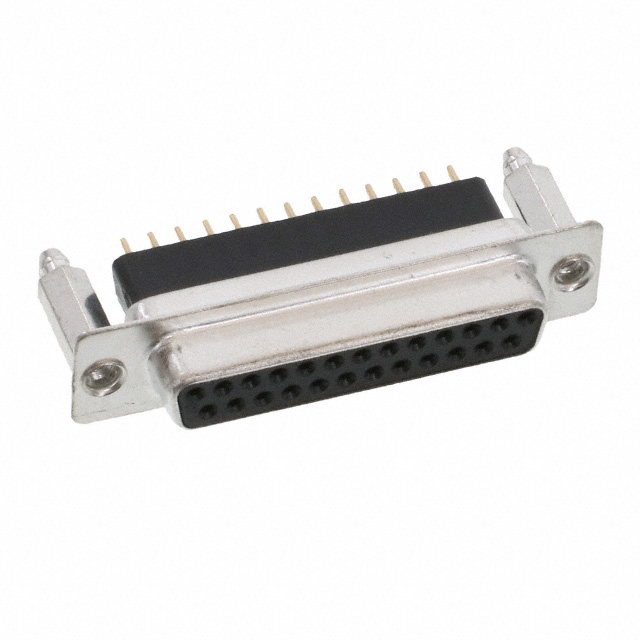

DB25-SE-1-BL
Or copy the link below:
- Mfr.Part #
- DB25-SE-1-BL
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS VERT SLDR
- Stock
- 94
- In Stock ：
- 94
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- PCB Contact Pattern :
- STAGGERED
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Dielectric Material :
- Thermoplastic
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Feature :
- Board Lock
- Mounting Option 2 :
- JACKSCREW
- Contact Finish Thickness :
- Flash
- Body Breadth :
- 0.494 inch
- Total Number of Contacts :
- 25
- Contact Style :
- RND PIN-SKT
- Mounting Type :
- Through Hole
- Number of Rows :
- 2
- Termination :
- Solder
- Body/Shell Style :
- PLUG
- Insulation Resistance :
- 1000000000Ohm
- Flange Feature :
- Board Side (4-40)
- Shell Finish :
- Tin
- Number Of PCB Rows :
- 2
- Additional Feature :
- RoHS Compliant
- Connector Style :
- D-Sub
- Factory Lead Time :
- 9 Weeks
- Reference Standard :
- UL, CSA
- Contact Finish :
- Gold
- Connector Type :
- Receptacle, Female Sockets
- Voltage - Rated :
- 250VAC
- Reliability :
- COMMERCIAL
- Mating Contact Pitch :
- 0.109 inch
- Shell Size, Connector Layout :
- 3 DB B
- Series :
- DSE
- Current Rating (Amps) :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- COPPER ALLOY
- Contact Pattern :
- STAGGERED
- Operating Temperature :
- -55°C~105°C
- Number of Positions :
- 25
- Dielectric Withstanding Voltage :
- 1000VAC V
- Color :
- Black
- Shell Material, Finish :
- Steel, Tin Plated
- Datasheets
- DB25-SE-1-BL
DB25-SE-1-BL Documents
DSE Series D-Sub Receptacle, Female Sockets 25-Position Solder 3 DB B Through Hole Copper Alloy Gold Steel, Tin Plated
DB25-SE-1-BL Overview
Packaging is in the form of Receptacle, Female Sockets.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the DSE Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ROHS COMPLIANT, to name a few.A number of features make the Board Lock feature more powerful.-55°C~105°C Operating Temperature is the default operating temperature for the device.
DB25-SE-1-BL Features
DSE series
DB25-SE-1-BL Applications
There are a lot of Adam Tech
DB25-SE-1-BL D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
