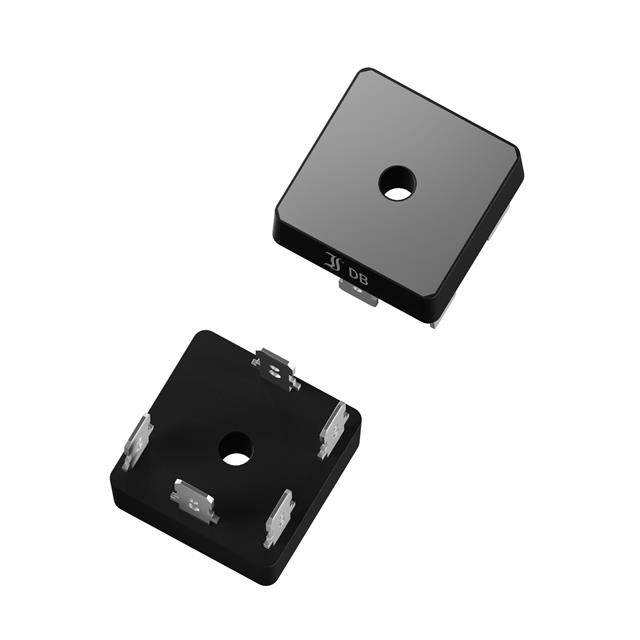

DB25-12

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Diode Type :

BRIDGE RECTIFIER DIODE

Diode Element Material :

SILICON

Bridge Type :

Three Phase

Terminal Position :

UPPER

RoHS Status :

Yes with exemptions

Packaging :

Box

Peak Average Forward Current (A) :

25

Additional Feature :

UL RECOGNIZED

Avg. Forward Curr (Max) :

25(A)

Reach Compliance Code :

not_compliant

Non-rep Pk Forward Current-Max :

385 A

Number of Elements :

1

Maximum Operating Temperature (°C) :

150

Peak Rep Rev Volt :

1200(V)

Package Width :

28.5

Subcategory :

Bridge Rectifier Diodes

Operating Temperature Classification :

Automotive

PCB changed :

5

Peak Reverse Current (uA) :

10

Qualification Status :

Not Qualified

Military :

No

Surface Mount :

No

Peak Non-Repetitive Surge Current (Max) :

385(A)

Number of Terminals :

5

Mounting :

Screw

Output Current-Max :

25 A

RMS Voltage (Max) :

800(V)

ECCN (US) :

EAR99

Peak Reverse Recovery Time (ns) :

1500(Typ)

Operating Temp Range :

-50C to 150C

Rep Pk Reverse Voltage-Max :

1200 V

Rev Curr :

10(mA)

Peak Reflow Temperature (Cel) :

260

Peak RMS Reverse Voltage (V) :

800

HTS Code :

8541.10.00.80

Package Length :

28.5

Rad Hardened :

No

Number of Phases :

3

Forward Voltage :

1.05(V)

Terminal Form :

UNSPECIFIED

Peak Reverse Repetitive Voltage (V) :

1200

Pin Count :

5

Package Height :

10

Supplier Temperature Grade :

COMMERCIAL

Manufacturer :

Diotec Semiconductor AG

Configuration :

Single

Peak Non-Repetitive Forward Surge Current (A) :

385

Minimum Operating Temperature (°C) :

-50

Phase Type :

Three Phase

JESD-30 Code :

S-PUFM-X5

Package Shape :

Square
