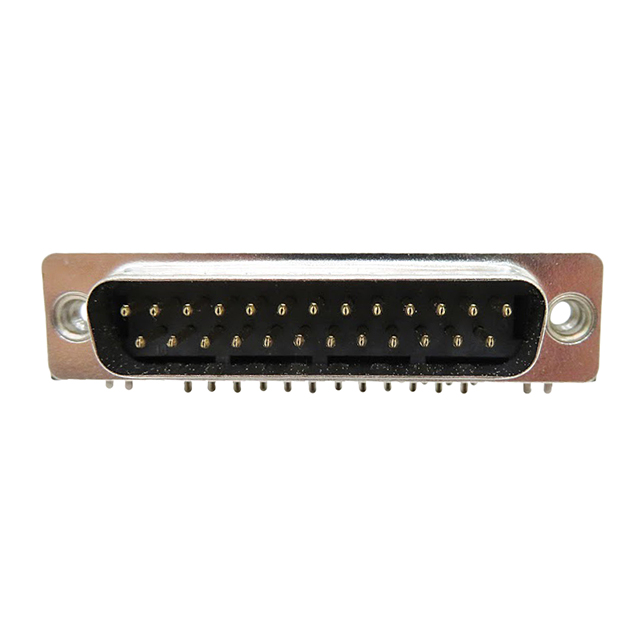

DB25-PL-24

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Number of Positions :

25

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-55°C~105°C

Lead Free :

Lead Free

Contact Material :

COPPER ALLOY

Mounting Option 2 :

INSERT

Dielectric Withstanding Voltage :

1000VAC V

Contact Pattern :

STAGGERED

Option :

GENERAL PURPOSE

Feature :

Board Lock, Grounding Indents

Shell Material, Finish :

Steel, Tin Plated

Shell Size, Connector Layout :

3 DB B

Mixed Contacts :

No

Current Rating (Amps) :

3A

Contact Finish Thickness :

Flash

Connector Style :

D-Sub

Number Of PCB Rows :

2

Series :

DPL

Filter Feature :

No

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Backset Spacing :

0.319 (8.10mm)

PCB Contact Pattern :

STAGGERED

Material :

Metal

Empty Shell :

No

MIL Conformance :

No

Flange Feature :

Housing/Shell (4-40)

Packaging :

Tray

Body Breadth :

0.494 inch

Shell Finish :

Tin

Contact Finish :

Gold

DIN Conformance :

No

Orientation :

RIGHT ANGLE

Reliability :

COMMERCIAL

Voltage - Rated :

250VAC

IEC Conformance :

No

Contact Form :

Stamped

Insulation Resistance :

5000000000Ohm

Body Depth :

0.488 inch

UL Flammability Code :

94V-0

Mating Contact Pitch :

0.109 inch

Mounting Type :

Through Hole, Right Angle

Reference Standard :

UL, CSA

Color :

Black

Number of Rows :

2

Connector Type :

Plug, Male Pins

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Style :

RND PIN-SKT

Factory Lead Time :

9 Weeks

Additional Feature :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

25
