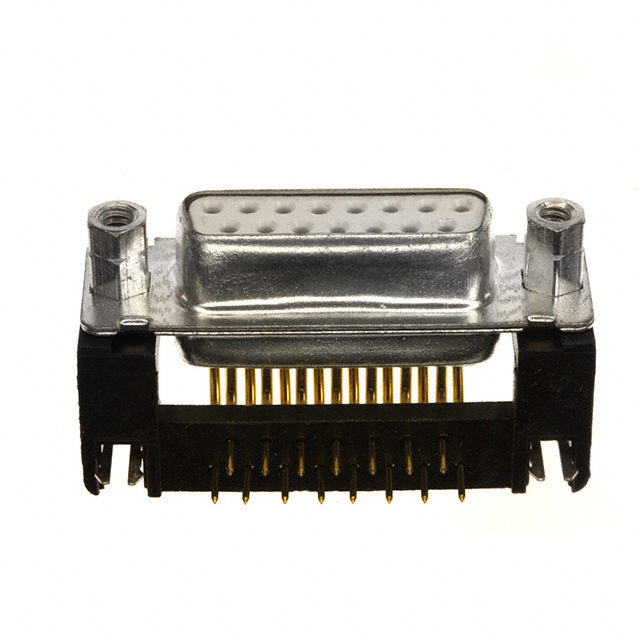

DAPV15S565GTLF
Or copy the link below:
- Mfr.Part #
- DAPV15S565GTLF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS R/A SLDR
- Stock
- 2,938
- In Stock ：
- 2,938
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Contact Plating :
- Gold
- Pitch :
- 2.74mm
- Factory Lead Time :
- 13 Weeks
- Orientation :
- RIGHT ANGLE
- Contact Material :
- COPPER ALLOY
- Dielectric Material :
- Thermoplastic
- Termination :
- Solder
- Housing Material :
- Thermoplastic
- Shell Size, Connector Layout :
- 2 DA A
- Current Rating (Amps) :
- 7.5A
- Operating Temperature :
- -55°C~125°C
- Number of Positions :
- 15
- Max Supply Voltage (AC) :
- 1kV
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Lock
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Backset Spacing :
- 0.406 (10.30mm)
- Gender :
- Male
- Packaging :
- Tray
- Current Rating :
- 7.5A
- Min Operating Temperature :
- -55°C
- Depth :
- 18.69mm
- Voltage - Rated :
- 300V
- Contact Finish :
- Gold, GXT™
- Mounting Type :
- Through Hole, Right Angle
- Connector Style :
- D-Sub
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Lead Free :
- Lead Free
- Material Flammability Rating :
- UL94 V-0
- Shell Material, Finish :
- Steel, Tin Plated
- Contact Type :
- Signal
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Length :
- 38.76mm
- Series :
- DP
- Number of Ports :
- 1
- Max Operating Temperature :
- 125°C
- Connector Type :
- Receptacle, Female Sockets
- Number of Rows :
- 2
- Radiation Hardening :
- No
- Number of Contacts :
- 15
- Number of Terminations :
- 15
- Datasheets
- DAPV15S565GTLF
DAPV15S565GTLF Documents
DP Series D-Sub Receptacle, Female Sockets 15-Position Male Signal Solder 2 DA A Through Hole, Right Angle Copper Alloy Gold, GXT™ Steel, Tin Plated
DAPV15S565GTLF Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the DP Series of products.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -55°C at all times.The device is equipped with 1 ports for the management of a variety of tasks.A number of features make it more powerful because of its Board Lock feature.Through Hole mounts the part.15 terminations are present on the chip.There is no operating temperature for the device.
DAPV15S565GTLF Features
15 basic kinds of terminations
DP series
DAPV15S565GTLF Applications
There are a lot of Amphenol ICC (FCI)
DAPV15S565GTLF D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
