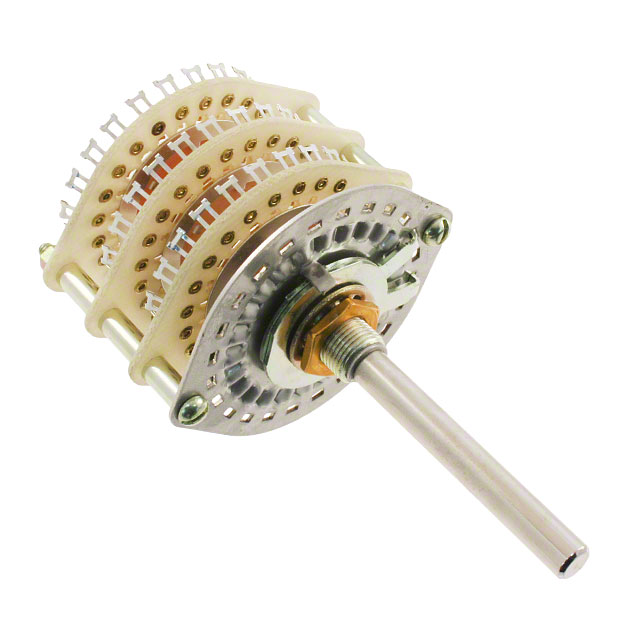

D9G0323N
Or copy the link below:
- Mfr.Part #
- D9G0323N
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-23POS 250MA 115V
- Stock
- 16,577
- In Stock ：
- 16,577
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Electrical Life :
- 25000 Cycle(s)
- Actuator Length :
- 47.63mm
- Contact Voltage(DC)-Max :
- 28V
- Contact Current(AC)-Max :
- 0.25A
- Mounting Type :
- Panel Mount
- Index Angle :
- 15 °
- Actuator Type :
- Round (6.35mm Dia)
- Termination :
- Solder
- Sealing :
- Epoxy
- Throw Configuration :
- 3PST
- Contact Finish :
- Silver
- ECCN Code :
- EAR99
- Published :
- 2006
- Voltage - Rated DC :
- 28V
- Current Rating :
- 1.5A
- Termination Style :
- Solder Lug
- Series :
- D9
- Number of Positions :
- 2 ~ 23
- Depth Behind Panel :
- 39.17mm
- PCB Hole Count :
- 24
- Current Rating (Amps) :
- 250mA AC 1.5A DC
- Switch Type :
- ROTARY SWITCH
- REACH SVHC :
- Unknown
- Contact Function :
- On-On
- Orientation :
- Vertical
- Circuit per Deck :
- SP23T
- Number of Decks :
- 3
- Index Stops :
- Adjustable
- Contact Timing :
- Non-Shorting (BBM)
- Contact Resistance :
- 0.005mOhm
- RoHS Status :
- RoHS Compliant
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Lead Free :
- Lead Free
- Contact Material :
- Brass
- Voltage - Rated AC :
- 115V
- Number of Poles per Deck :
- 1
- Mount :
- Panel
- Datasheets
- D9G0323N
