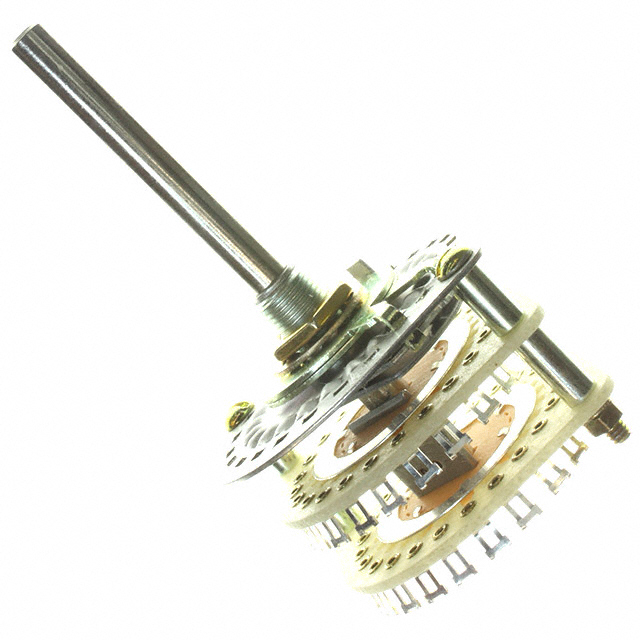

D9G0223N
Or copy the link below:
- Mfr.Part #
- D9G0223N
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-23POS 250MA 115V
- Stock
- 45,669
- In Stock ：
- 45,669
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Index Angle :
- 15 °
- Orientation :
- Vertical
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Bushing Length :
- 0.375 inch
- Number of Positions :
- 2 ~ 23
- Contact Timing :
- Non-Shorting (BBM)
- REACH SVHC :
- Unknown
- Contact Style :
- Non-Shorting
- Contact Resistance :
- 5mOhm
- Actuator Type :
- Round (6.35mm Dia)
- Max Voltage Rating (DC) :
- 28V
- Insulation Resistance :
- 750GOhm
- Number of Decks :
- 2
- Contact Material :
- Brass
- Depth :
- 26.4668mm
- Contact Function :
- On-On
- Max Voltage Rating (AC) :
- 115V
- Current Rating (Amps) :
- 250mA AC 1.5A DC
- RoHS Status :
- RoHS Compliant
- Circuit per Deck :
- SP23T
- Mechanical Life :
- 25000 cycles
- Published :
- 2006
- Current Rating :
- 250mA
- Actuator Length :
- 47.63mm
- Depth Behind Panel :
- 26.47mm
- PCB Hole Count :
- 24
- Factory Lead Time :
- 5 Weeks
- Termination Style :
- Solder Lug
- Termination :
- Solder
- Voltage - Rated AC :
- 115V
- Sealing :
- Epoxy
- ECCN Code :
- EAR99
- Series :
- D9
- Mounting Type :
- Panel Mount
- Mount :
- Panel
- Contact Finish :
- Silver
- Illumination Type :
- Illuminated
- Throw Configuration :
- DP23T, SP23T
- Switch Type :
- ROTARY SWITCH
- Voltage - Rated DC :
- 115V
- Number of Poles per Deck :
- 1
- Index Stops :
- Adjustable
- Lead Free :
- Lead Free
- Datasheets
- D9G0223N
D9G0223N datasheet pdf and Rotary Switches product details from Electroswitch stock available at
