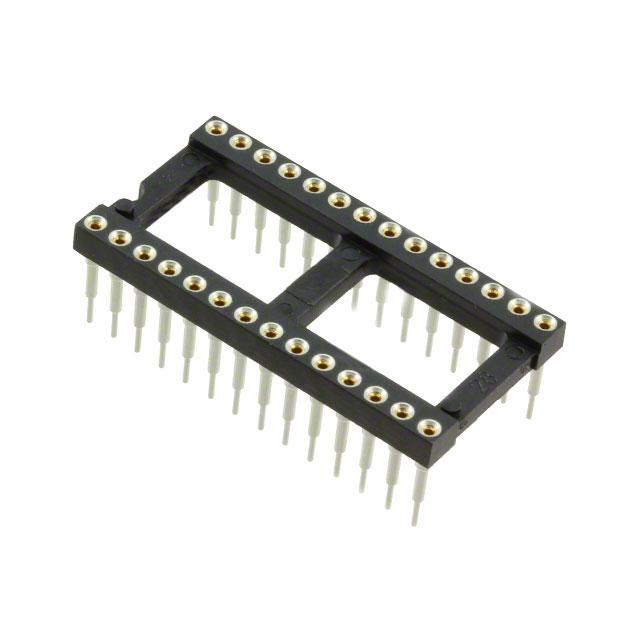

D95028-42

Manufacturer :

Harwin

Product Category :

IC Sockets

Number of Positions or Pins (Grid) :

28 (2 x 14)

Housing Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Voltage - Rated AC :

100V

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Pitch - Post :

0.100 2.54mm

Type :

DIP, 0.6 (15.24mm) Row Spacing

Row Spacing :

15.24 mm

Body Breadth :

0.694 inch

Contact Material - Mating :

BERYLLIUM COPPER

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Series :

D95

Contact Style :

RND PIN-SKT

Lead Length :

3.2004mm

Additional Feature :

RoHS Compliant

Factory Lead Time :

20 Weeks

Contact Finish - Post :

Tin

Published :

2005

Orientation :

Straight

Mount :

Through Hole

Insulation Material :

Polychlorinated

JESD-609 Code :

e3

RoHS Status :

ROHS3 Compliant

Termination Post Length :

0.126 3.20mm

Flammability Rating :

UL94 V-0

Number of Rows :

2

Dielectric Withstanding Voltage :

1000VAC V

Packaging :

Bulk

Voltage - Rated DC :

150V

Contact Resistance :

10MOhm

Current Rating :

1A

REACH SVHC :

No SVHC

Contact Material :

Copper

Operating Temperature :

-55°C~125°C

Pbfree Code :

yes

Termination :

Solder

Insulation Resistance :

10GOhm

Contact Finish Thickness - Post :

196.9μin 5.00μm

ECCN Code :

EAR99

Contact Finish - Mating :

Gold

Length :

35.5mm

Depth :

17.64mm

Feature :

Elevated, Open Frame

Connector Type :

DIP

Color :

Black

Contact Material - Post :

Brass

HTS Code :

8536.69.40.40

Mounting Type :

Through Hole

Number of Contacts :

28

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.1 inch

Pitch - Mating :

0.100 2.54mm
