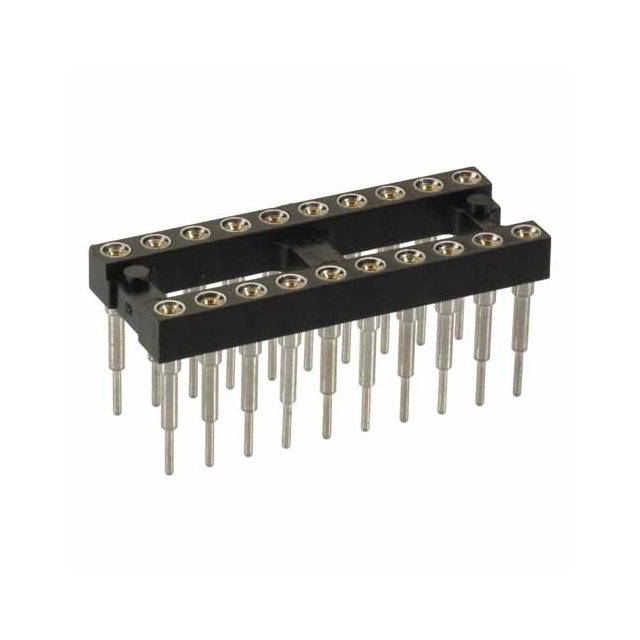

D95020-42
Or copy the link below:
- Mfr.Part #
- D95020-42
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 20POS GOLD
- Stock
- 31,662
- In Stock ：
- 31,662
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- IC Sockets
- Pbfree Code :
- yes
- Pitch - Post :
- 0.100 2.54mm
- Insulation Resistance :
- 10000000000Ohm
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- HTS Code :
- 8536.69.40.40
- Lead Length :
- 3.2004mm
- Contact Material - Mating :
- BERYLLIUM COPPER
- Body Depth :
- 0.315 inch
- Contact Style :
- RND PIN-SKT
- Termination Post Length :
- 0.126 3.20mm
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Number of Positions or Pins (Grid) :
- 20 (2 x 10)
- Contact Material - Post :
- Brass
- Housing Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Contact Finish - Mating :
- Gold
- Feature :
- Elevated, Open Frame
- Current Rating :
- 1A
- JESD-609 Code :
- e3
- Body Breadth :
- 0.394 inch
- Contact Finish Thickness - Post :
- 196.9μin 5.00μm
- Series :
- D95
- Packaging :
- Bulk
- Body Length or Diameter :
- 0.996 inch
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Contact Resistance :
- 10MOhm
- Termination :
- Solder
- Mating Contact Pitch :
- 0.1 inch
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- Number of Contacts :
- 20
- Additional Feature :
- RoHS Compliant
- Operating Temperature :
- -55°C~125°C
- ECCN Code :
- EAR99
- Contact Finish - Post :
- Tin
- Dielectric Withstanding Voltage :
- 1000VAC V
- Number of Pins :
- 20
- Published :
- 2010
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- Factory Lead Time :
- 20 Weeks
- Datasheets
- D95020-42
