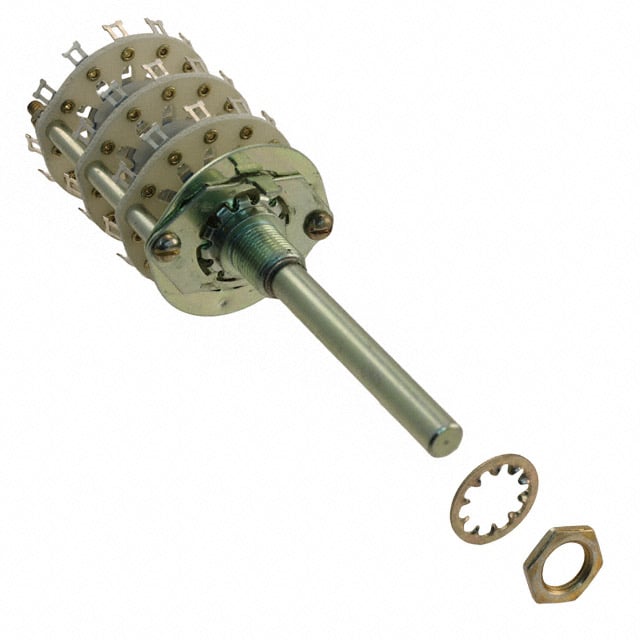

D4G0311N
Or copy the link below:
- Mfr.Part #
- D4G0311N
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-11POS 500MA 115V
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Orientation :
- Straight
- Actuator Type :
- Round (6.35mm Dia)
- RoHS Status :
- RoHS Compliant
- Body Height :
- 42.82mm
- Switch Type :
- ROTARY SWITCH
- Contact Style :
- Non-Shorting
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Termination Style :
- Solder Lug
- Contact Timing :
- Non-Shorting (BBM)
- Series :
- D4
- Throw Configuration :
- 3P11T, SP11T
- Voltage - Rated DC :
- 28V
- Length :
- 47.6mm
- Number of Decks :
- 3
- REACH SVHC :
- Unknown
- ECCN Code :
- EAR99
- Factory Lead Time :
- 6 Weeks
- Termination :
- Lug
- Actuator Length :
- 47.63mm
- Number of Positions :
- 2 ~ 11
- Current Rating (Amps) :
- 500mA AC 1.5A DC
- Contact Resistance :
- 3.5mOhm
- Index Stops :
- Adjustable
- Contact Material :
- Brass
- Max Voltage Rating (AC) :
- 115V
- Current Rating :
- 1.5A
- Mounting Type :
- Panel Mount
- Depth :
- 42.8244mm
- Depth Behind Panel :
- 42.82mm
- Mechanical Life :
- 25000 cycles
- Lead Free :
- Lead Free
- Contact Finish :
- Silver
- Contact Current(AC)-Max :
- 0.5A
- Mount :
- Panel
- Number of Switch Sections :
- 3
- Number of Poles per Deck :
- 1
- Circuit per Deck :
- SP11T
- Insulation Resistance :
- 750GOhm
- Voltage - Rated AC :
- 115V
- Illumination Type :
- Illuminated
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Max Voltage Rating (DC) :
- 28V
- Diameter :
- 33.3mm
- Index Angle :
- 30 °
- Published :
- 2006
- Datasheets
- D4G0311N
