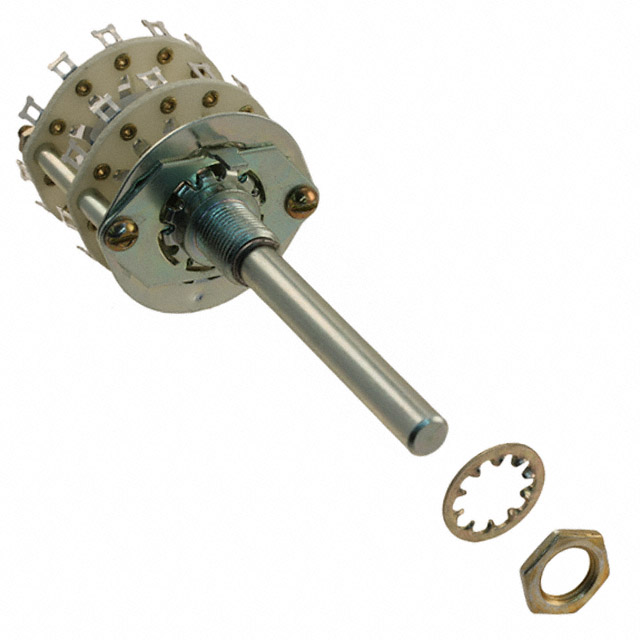

D4G0211N
Or copy the link below:
- Mfr.Part #
- D4G0211N
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-11POS 500MA 115V
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Depth Behind Panel :
- 28.55mm
- Actuator Length :
- 47.63mm
- Index Angle :
- 30 °
- Published :
- 2006
- Contact Timing :
- Non-Shorting (BBM)
- Current Rating (Amps) :
- 500mA AC 1.5A DC
- Actuator Type :
- Round (6.35mm Dia)
- ECCN Code :
- EAR99
- Circuit per Deck :
- SP11T
- Series :
- D4
- Contact Material :
- Brass
- Factory Lead Time :
- 6 Weeks
- Pbfree Code :
- yes
- Contact Resistance :
- 3.5mOhm
- Orientation :
- Straight
- Illumination Type :
- Illuminated
- Number of Switch Sections :
- 2
- Current Rating :
- 1.5A
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Index Stops :
- Adjustable
- Contact Finish :
- Silver
- Contact Style :
- Non-Shorting
- Termination :
- Lug
- Switch Type :
- ROTARY SWITCH
- Voltage - Rated AC :
- 115V
- Termination Style :
- Solder Lug
- Max Voltage Rating (AC) :
- 115V
- Contact Current(AC)-Max :
- 0.5A
- Number of Poles per Deck :
- 1
- Mounting Type :
- Panel Mount
- Voltage - Rated DC :
- 28V
- Number of Decks :
- 2
- Max Voltage Rating (DC) :
- 28V
- Insulation Resistance :
- 750GOhm
- Throw Configuration :
- DP11T, SP11T
- Lead Free :
- Lead Free
- REACH SVHC :
- Unknown
- Number of Positions :
- 2 ~ 11
- RoHS Status :
- RoHS Compliant
- Mechanical Life :
- 25000 cycles
- Body Length or Diameter :
- 36.5mm
- Mount :
- Panel
- Depth :
- 28.5496mm
- Datasheets
- D4G0211N
D4G0211N datasheet pdf and Rotary Switches product details from Electroswitch stock available at
