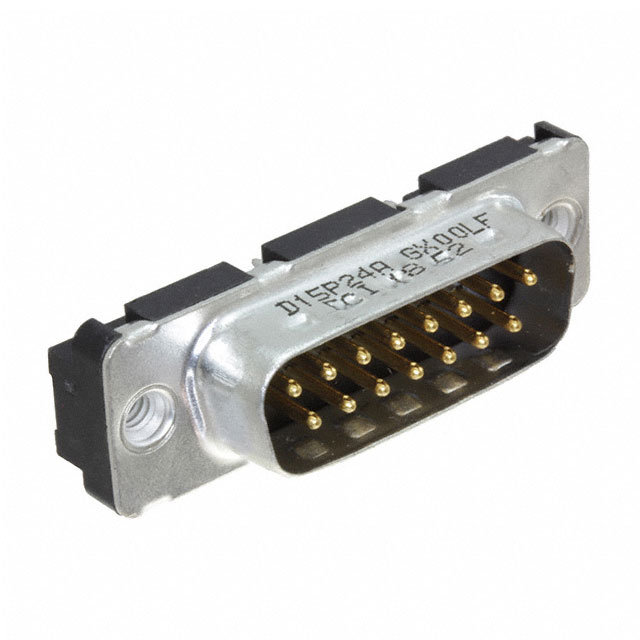

D15P24A4GX00LF
Or copy the link below:
- Mfr.Part #
- D15P24A4GX00LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 15POS VERT SLDR
- Stock
- 17
- In Stock ：
- 17
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Number of Positions :
- 15
- Contact Plating :
- Gold, Tin
- Current Rating :
- 5A
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Gold
- Radiation Hardening :
- No
- Shell Material, Finish :
- Steel, Tin Plated
- Number of Contacts :
- 15
- Gender :
- Male
- Operating Temperature :
- -55°C~125°C
- Orientation :
- Straight
- Number of Terminations :
- 15
- Connector Type :
- Plug, Male Pins
- Shell Size, Connector Layout :
- 2 DA A
- Flange Feature :
- Housing/Shell (4-40)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Max Supply Voltage (AC) :
- 300V
- Mount :
- Through Hole
- Contact Type :
- Signal
- Length :
- 39.14mm
- Number of Ports :
- 1
- Pitch :
- 2.84mm
- Width :
- 11.9mm
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Series :
- Delta D
- Termination :
- Solder
- Depth :
- 12.55mm
- Connector Style :
- D-Sub
- Feature :
- Board Lock, Grounding Indents
- Contact Material :
- Phosphor Bronze
- Mounting Type :
- Through Hole
- Packaging :
- Tray
- Current Rating (Amps) :
- 5A
- Voltage - Rated :
- 300V
- Max Operating Temperature :
- 125°C
- Number of Rows :
- 2
- Min Operating Temperature :
- -55°C
- Housing Material :
- PBT
- Contact Finish Thickness :
- Flash
- Plating :
- Tin
- Factory Lead Time :
- 17 Weeks
- Max Voltage Rating (AC) :
- 300V
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- D15P24A4GX00LF
D15P24A4GX00LF Documents
Delta D Series D-Sub Plug, Male Pins 15-Position Male Signal Solder 2 DA A Through Hole Phosphor Bronze Gold Steel, Tin Plated
D15P24A4GX00LF Overview
Packaging is Plug, Male Pins.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Delta D Series.If the temperature is below 125°C, it's best to use it.-55°C is the minimum temperature for this device.A variety of tasks can be performed using its 1 ports.Several benefits come from the Board Lock, Grounding Indents feature.There is a mounting hole at Through Hole.A chip with 15 terminations can be found.Devices operate at -55°C~125°C operating temperatures.
D15P24A4GX00LF Features
15 basic kinds of terminations
Delta D series
D15P24A4GX00LF Applications
There are a lot of Amphenol ICC (FCI)
D15P24A4GX00LF D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
