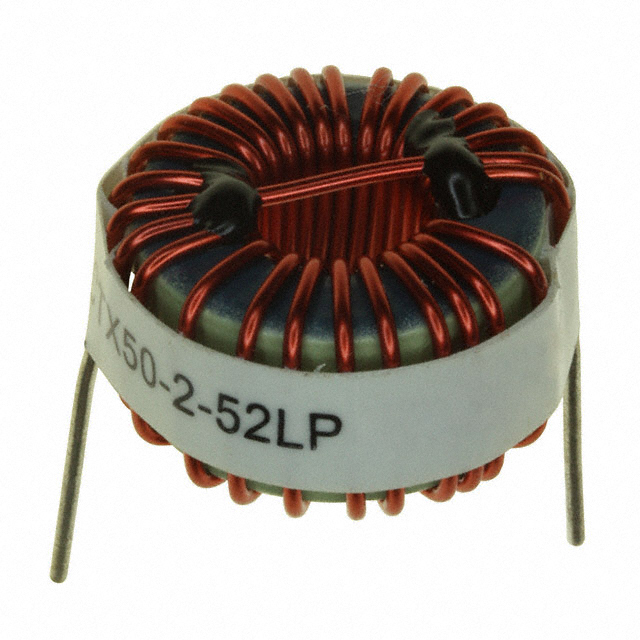

CTX50-2-52LP-R
Or copy the link below:
- Mfr.Part #
- CTX50-2-52LP-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Radial, Horizontal (Open)
- Datasheet
- Download
- Description
- FIXED IND 50UH 4.9A 32.6 MOHM TH
- Stock
- 381
- In Stock ：
- 381
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Fixed Inductors
- Test Frequency :
- 100kHz
- Tolerance :
- ±20%
- Current Rating :
- 4.9A
- Length :
- 21.6mm
- DC Current :
- 4.9A
- REACH SVHC :
- yes
- Lead Pitch :
- 19.5mm
- Diameter :
- 21.6mm
- Operating Temperature :
- -40°C~75°C
- Size / Dimension :
- 0.850Dia 21.60mm
- Weight :
- 15.422141g
- DC Resistance (DCR) :
- 32.6mOhm Max
- Radiation Hardening :
- No
- Package / Case :
- Radial, Horizontal (Open)
- Factory Lead Time :
- 15 Weeks
- Max DC Current :
- 4.9A
- Lead Free :
- Lead Free
- RoHS Status :
- ROHS3 Compliant
- Lead/Base Style :
- Radial
- Termination :
- Radial
- Height :
- 13.6mm
- Series :
- CTX
- Number of Pins :
- 2
- Current - Saturation :
- 4.9A
- Inductance :
- 50μH
- Material - Core :
- Iron Powder
- Packaging :
- Bulk
- Min Operating Temperature :
- -40°C
- Mounting Type :
- Through Hole
- Max Operating Temperature :
- 75°C
- Published :
- 2007
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shielding :
- Unshielded
- Military Standard :
- Not
- Height Seated (Max) :
- 0.535 13.60mm
- Current Rating (Amps) :
- 4.9A
- Type :
- Toroidal
- Mount :
- Through Hole
- Inductance Frequency - Test :
- 100kHz
- Inductance Tolerance :
- 20%
- RMS Current (Irms) :
- 4.9A
- Datasheets
- CTX50-2-52LP-R
CTX50-2-52LP-R Documents
CTX50-2-52LP-R datasheet pdf and Fixed Inductors product details from Eaton - Electronics Division stock available at
