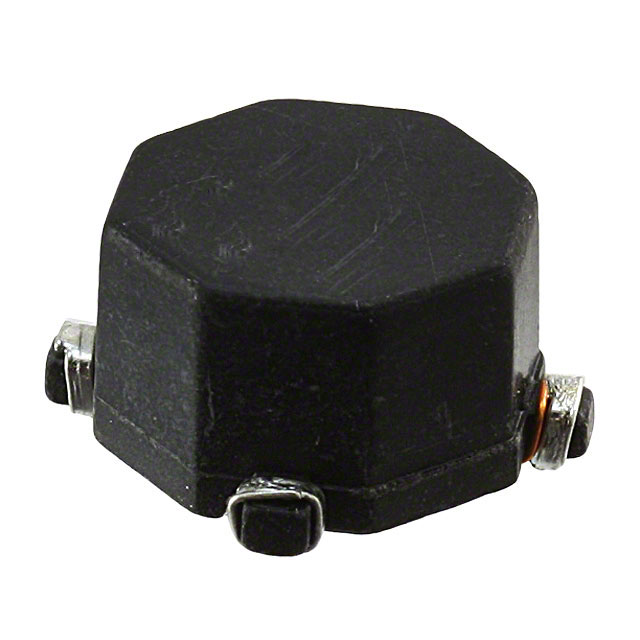

CTX5-2A-R
Or copy the link below:
- Mfr.Part #
- CTX5-2A-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 5.06UH SMD
- Stock
- 46,090
- In Stock ：
- 46,090
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Arrays, Signal Transformers
- Current Saturation - Parallel :
- 4.69A
- Current Rating - Series :
- 2.17A
- Tolerance :
- ±25%
- DC Resistance (DCR) - Parallel :
- 21mOhm Max
- Height :
- 0.235 5.97mm
- Series :
- OCTA-PAC® PLUS
- Published :
- 2007
- Inductance - Connected In Series :
- 20.22μH
- Inductance - Connected In Parallel :
- 5.06μH
- Operating Temperature :
- -40°C~85°C
- DC Resistance (DCR) - Series :
- 84mOhm Max
- Shielding :
- Unshielded
- Number of Coils :
- 2
- Packaging :
- Tape and Reel (TR)
- Current Rating - Parallel :
- 4.34A
- Package / Case :
- Nonstandard
- Size / Dimension :
- 0.450Lx0.450W 11.43mmx11.43mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Current Saturation - Series :
- 2.34A
- Factory Lead Time :
- 11 Weeks
- Datasheets
- CTX5-2A-R
CTX5-2A-R datasheet pdf and Arrays, Signal Transformers product details from Eaton - Electronics Division stock available at
