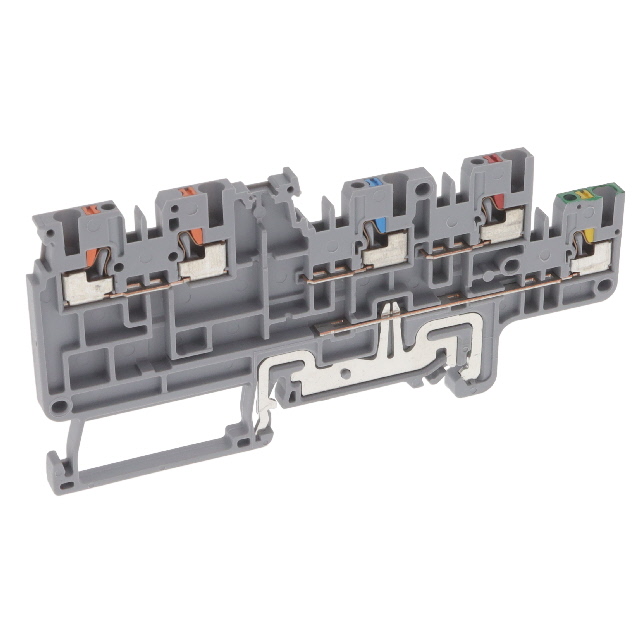

CPSTG1.5/4

Manufacturer :

Altech Corporation

Product Category :

Din Rail, Channel

Voltage - UL :

150V

Fuse Type :

-

Number of Levels :

3; 1 Grounded

Terminal - Width :

3.5mm

Features :

LED Indicator

Product Status :

Active

Width :

3.5 mm

Housing Material :

Polyamide (PA)

Current Rating :

15 A

Number of Positions :

4 Position

Disconnect Type :

-

Voltage Rating :

150 V

Termination Style :

Push In, Spring

Current - IEC :

13.5 A

Type :

Sensor and Actuator Terminal Block

Wire Gauge or Range - AWG :

14-24 AWG

Material Flammability Rating :

-

Height :

55.55 mm

Stripping Length :

8mm

Series :

CP

Connection Method :

Push-In

Mounting Style :

DIN Rail (35)

Color :

Gray

Wire Gauge or Range - mm² :

0.2-1.5mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Package :

Box

Voltage - IEC :

250V

Length :

96.5 mm

Current - UL :

15 A
