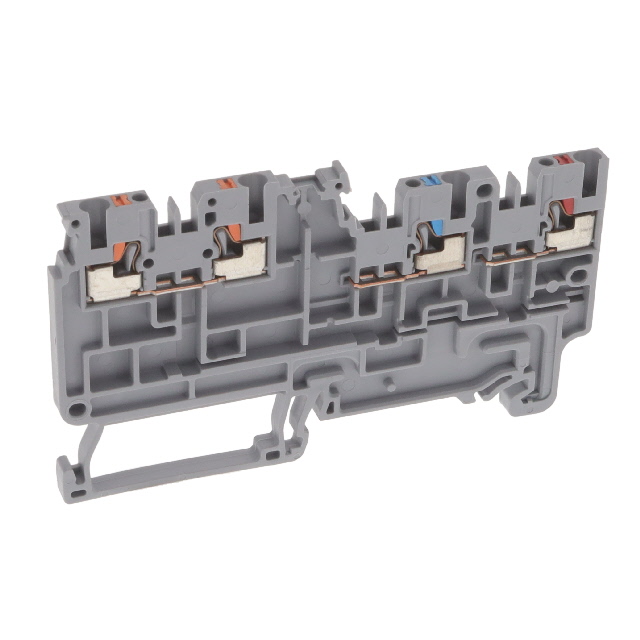

CPST1.5/3

Manufacturer :

Altech Corporation

Product Category :

Din Rail, Channel

Mounting Style :

DIN Rail (35)

Connection Method :

Push-In

Package :

Box

Voltage Rating :

150 V

Stripping Length :

8mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Fuse Type :

-

Material Flammability Rating :

-

Terminal - Width :

3.5mm

Length :

79.8 mm

Voltage - UL :

150V

Number of Levels :

2

Current Rating :

15 A

Color :

Gray

Wire Gauge or Range - mm² :

0.2-1.5mm²

Current - IEC :

13.5 A

Features :

LED Indicator

Number of Positions :

3 Position

Wire Gauge or Range - AWG :

14-24 AWG

Height :

55.55 mm

Series :

CP

Product Status :

Active

Voltage - IEC :

250V

Housing Material :

Polyamide (PA)

Width :

3.5 mm

Type :

Sensor and Actuator Terminal Block

Current - UL :

15 A

Termination Style :

Push In, Spring

Disconnect Type :

-
