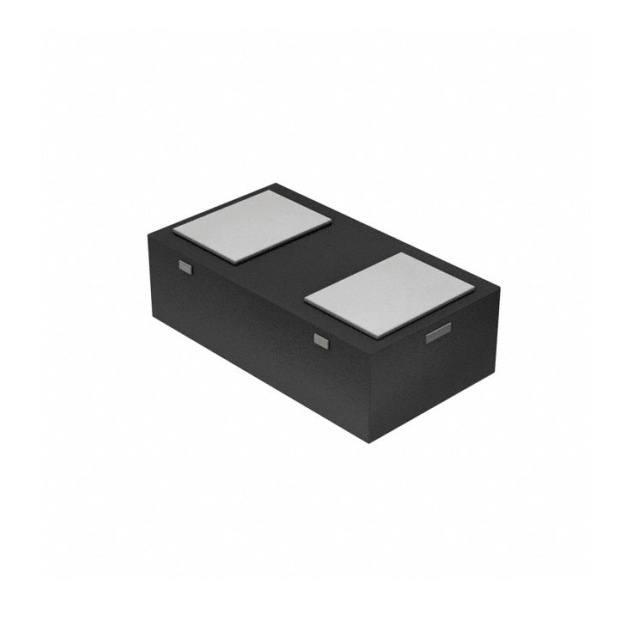

CPDUC36V-HF
Or copy the link below:
- Mfr.Part #
- CPDUC36V-HF
- Manufacturer
- Comchip Technology
- Package / Case
- 0603 (1608 Metric)
- Datasheet
- Download
- Description
- DIODE ESD 36VWM 58VC 0603C SOD-5
- Stock
- 13,122
- In Stock ：
- 13,122
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Power - Peak Pulse :
- 100W
- Series :
- -
- Bidirectional Channels :
- 1
- Polarity :
- Bidirectional
- Clamping Voltage :
- 58 V
- Product Type :
- ESD Suppressors
- Voltage - Clamping (Max) @ Ipp :
- 58V
- Working Voltage :
- 36 V
- Breakdown Voltage :
- 40 V
- Product Category :
- ESD Suppressors / TVS Diodes
- Supplier Device Package :
- 0603C/SOD-523F
- Mounting Type :
- Surface Mount
- Subcategory :
- TVS Diodes / ESD Suppression Diodes
- Maximum Operating Temperature :
- + 125 C
- Termination Style :
- SMD/SMT
- Capacitance @ Frequency :
- 10pF @ 1MHz
- Product Status :
- Active
- Voltage - Breakdown (Min) :
- 40V
- Number of Channels :
- 1 Channel
- Voltage - Reverse Standoff (Typ) :
- 36V (Max)
- Packaging :
- MouseReel
- Package / Case :
- 0603 (1608 Metric)
- Type :
- Zener
- RoHS :
- In Transition
- Current - Peak Pulse (10/1000μs) :
- 1.5A (8/20μs)
- Power Line Protection :
- No
- Brand :
- Comchip Technology
- Package :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C ~ 125°C (TJ)
- Manufacturer :
- Comchip Technology
- Applications :
- GENERAL PURPOSE
- Minimum Operating Temperature :
- - 40 C
- Datasheets
- CPDUC36V-HF
