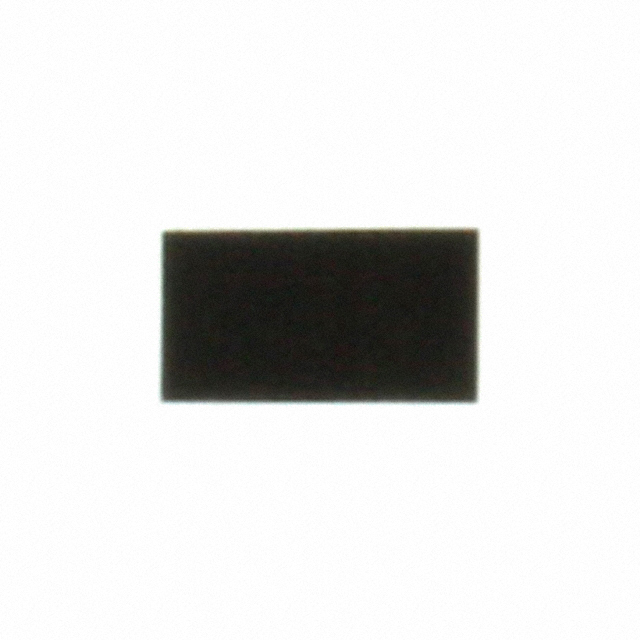

CPDU12V0U
Or copy the link below:
- Mfr.Part #
- CPDU12V0U
- Manufacturer
- Comchip Technology
- Package / Case
- 2-SMD, No Lead
- Datasheet
- Download
- Description
- TVS DIODE 12VWM 24V 0603/SOD523F
- Stock
- 3,741
- In Stock ：
- 3,741
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Min Operating Temperature :
- -55°C
- Capacitance :
- 60pF
- Published :
- 2011
- Case Code (Imperial) :
- 0603
- Clamping Voltage :
- 19V
- ECCN Code :
- EAR99
- Operating Supply Voltage :
- 800mV
- Package / Case :
- 2-SMD, No Lead
- Max Power Dissipation :
- 120W
- Power Line Protection :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current - Peak Pulse (10/1000μs) :
- 5A 8/20μs
- Max Operating Temperature :
- 125°C
- Mount :
- Surface Mount
- Polarity :
- Unidirectional
- Packaging :
- Tape and Reel (TR)
- Unidirectional Channels :
- 1
- Breakdown Voltage :
- 13.3V
- RoHS Status :
- ROHS3 Compliant
- Type :
- Zener
- Voltage - Clamping (Max) @ Ipp :
- 24V
- Termination :
- SMD/SMT
- Applications :
- GENERAL PURPOSE
- Reverse Standoff Voltage :
- 12V
- Factory Lead Time :
- 8 Weeks
- Mounting Type :
- Surface Mount
- Case Code (Metric) :
- 1608
- Capacitance @ Frequency :
- 60pF @ 1MHz
- Datasheets
- CPDU12V0U
CPDU12V0U Documents
CPDU12V0U datasheet pdf and TVS - Diodes product details from Comchip Technology stock available at Xinshop
