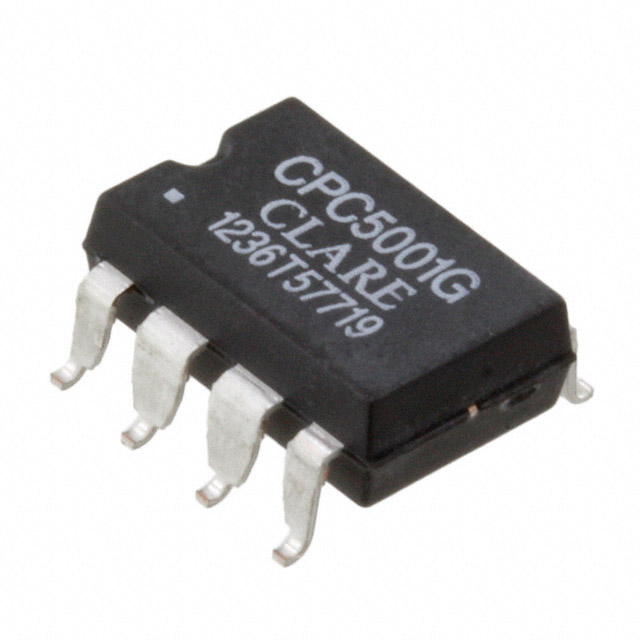

CPC5001GSTR
- Mfr.Part #
- CPC5001GSTR
- Manufacturer
- Littelfuse
- Package / Case
- 8-SMD, Gull Wing
- Datasheet
- Download
- Description
- OPTOISO 3.75KV 2CH OPEN DRN 8SMD
- Stock
- 67
- In Stock :
- 67
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Optoisolators - Logic Output
- Min Operating Temperature :
- -40°C
- Product Type :
- High Speed Optocouplers
- Subcategory :
- Optocouplers
- Brand :
- IXYS Integrated Circuits
- Voltage - Isolation :
- 3750Vrms
- Maximum Operating Temperature :
- + 85 C
- RoHS Status :
- ROHS3 Compliant
- Analog IC - Other Type :
- ANALOG CIRCUIT
- Supplier Device Package :
- --
- Series :
- --
- Manufacturer :
- IXYS
- Weight :
- 540.001716mg
- Max Power Dissipation :
- 800mW
- Output Type :
- Open Drain
- Common Mode Transient Immunity (Min) :
- 5kV/μs, 7kV/μs
- Reach Compliance Code :
- Compliant
- Base Product Number :
- CPC5001
- Product Category :
- High Speed Optocouplers
- Product Status :
- Obsolete
- Isolation Voltage :
- 3750 Vrms
- Published :
- 2013
- RoHS :
- Compliant
- HTS Code :
- 8542.39.00.01
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Transfer Ratio :
- -
- Voltage - Supply :
- 2.7V~5.5V
- Mount :
- Surface Mount
- Inputs - Side 1/Side 2 :
- 1/1
- Vf - Forward Voltage :
- -
- Output Current :
- -
- Max Operating Temperature :
- 85°C
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Rise / Fall Time (Typ) :
- --
- Current - DC Forward (If) (Max) :
- --
- Packaging :
- Tape and Reel (TR)
- Mounting Style :
- SMD/SMT
- Rise Time :
- -
- Factory Lead Time :
- 8 Weeks
- Package / Case :
- 8-SMD, Gull Wing
- Tradename :
- Clare
- Minimum Operating Temperature :
- - 40 C
- Mounting Type :
- Surface Mount
- Number of Pins :
- 8
- Propagation Delay tpLH / tpHL (Max) :
- 250ns, 100ns
- Propagation Delay :
- 100 ns
- Voltage - Forward (Vf) (Typ) :
- --
- Data Rate :
- 5MBd
- Operating Temperature :
- -40°C~85°C
- Number of Channels :
- 2
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Input Type :
- Logic
- Datasheets
- CPC5001GSTR
