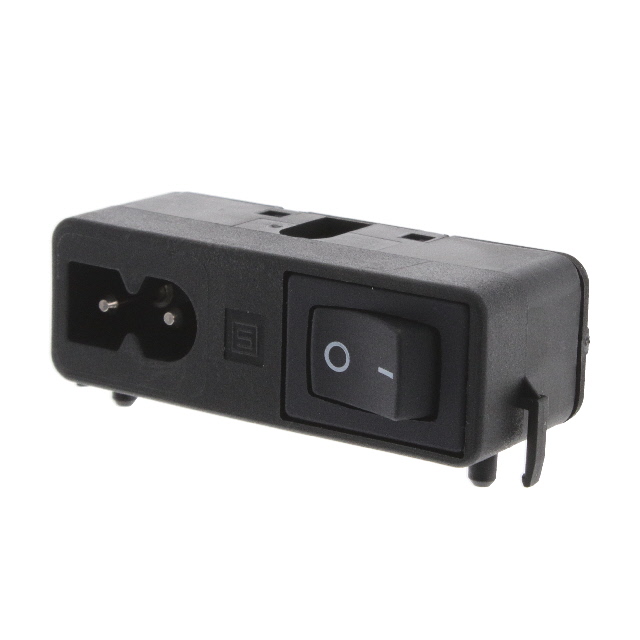

CMF2.1111.12

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Max Voltage Rating (AC) :

250V

Voltage - IEC :

250VAC

Approval Agency :

CCC, cULus, VDE

Voltage - UL :

125VAC

RoHS Status :

ROHS3 Compliant

Throw Configuration :

SPST

Housing Material :

Thermoplastic

Body/Shell Style :

Socket

Connector Style :

IEC 320-C8

Gender :

Male

Shell Material :

POLYETHYLENE

DIN Conformance :

No

Flammability Rating :

UL94 V-0

Series :

CMF2

Ingress Protection :

IP40

Packaging :

Bulk

Panel Thickness :

0.079 2.00mm

IEC Conformance :

yes

Number of Ports :

1

Mounting Type :

Panel Mount, Snap-In; Through Hole, Right Angle

Switch Features :

Switch On-Off

Max Operating Temperature :

70°C

Filter Type :

Unfiltered - Commercial

Max Current Rating :

2.5A

MIL Conformance :

No

Depth :

24.3mm

Feature :

Terminating Cover

Number of Positions :

2

Lead Free :

Lead Free

Package / Case :

Module

Option :

GENERAL PURPOSE

Accomodates a Fuse :

No

Current :

6A

Mount :

Panel, Snap in, Through Hole

Connector Type :

Receptacle, Male Pins - Module

Weight :

13.000014g

Current Rating :

2.5A

Min Operating Temperature :

-25°C

Total Number of Contacts :

2

Orientation :

RIGHT ANGLE

Pbfree Code :

yes

Length :

57.9mm

Voltage - Rated AC :

250V

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Voltage - Rated DC :

250V

Factory Lead Time :

13 Weeks

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
