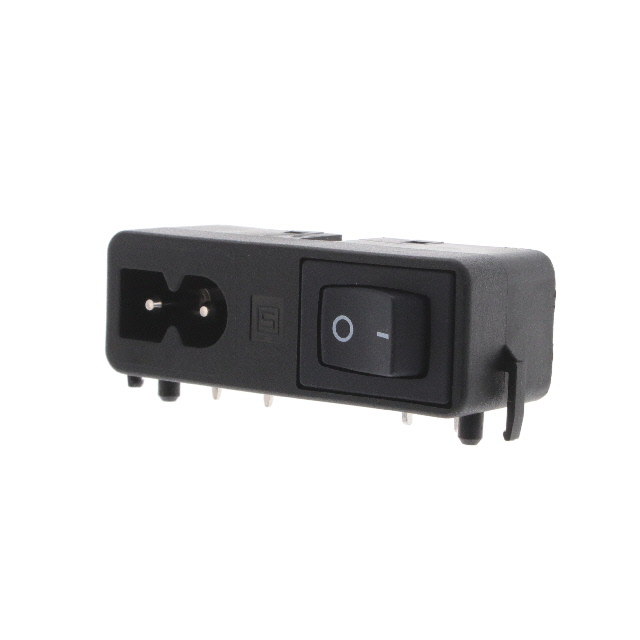

CMF2.1011.12

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Mounting Type :

Panel Mount, Snap-In; Through Hole, Right Angle

Filter Type :

Unfiltered - Commercial

Length :

57.9mm

Current - IEC :

2.5A

Max Voltage Rating (AC) :

250V

Lead Free :

Lead Free

Termination :

Solder

Orientation :

RIGHT ANGLE

Total Number of Contacts :

2

Number of Ports :

1

Depth :

24.3mm

Weight :

11.749999g

Throw Configuration :

SPST

Factory Lead Time :

13 Weeks

DIN Conformance :

No

Shell Material :

POLYETHYLENE

Min Operating Temperature :

-25°C

Flammability Rating :

UL94 V-0

Voltage - UL :

125VAC

IEC Conformance :

yes

Accomodates a Fuse :

No

RoHS Status :

ROHS3 Compliant

Material Flammability Rating :

UL94 V-0

Max Current Rating :

2.5A

HTS Code :

8536.69.40.30

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Body/Shell Style :

Socket

Panel Thickness :

0.079 2.00mm

Current :

6A

ECCN Code :

EAR99

Approval Agency :

CCC, cULus, VDE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Panel, Snap in, Through Hole

Packaging :

Bulk

Connector Style :

IEC 320-C8

Number of Positions :

2

Option :

GENERAL PURPOSE

Max Operating Temperature :

70°C

Package / Case :

Module

MIL Conformance :

No

Series :

CMF2

Connector Type :

Receptacle, Male Pins - Module

Ingress Protection :

IP40

Voltage - IEC :

250VAC

Switch Features :

Switch On-Off
