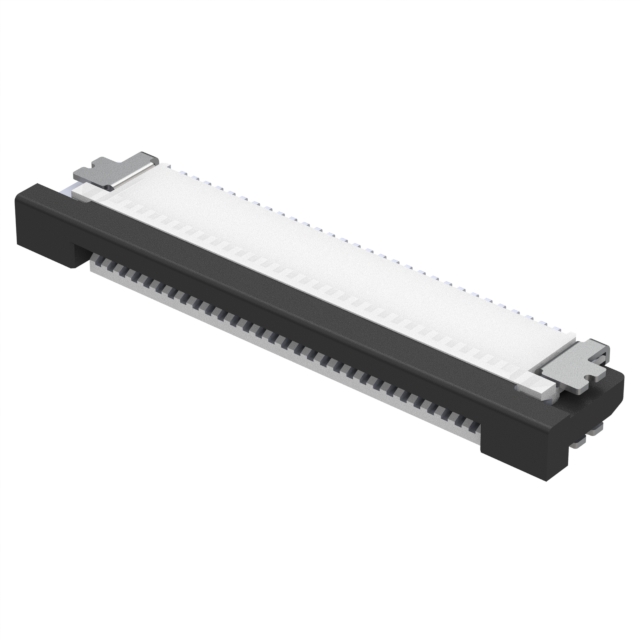

CF20301D0R0-NH

Manufacturer :

CviLux

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Mixed Contacts :

No

Terminal Pitch :

0.5 mm

Contact Finish Thickness :

120.0µin (3.05µm)

Contact Finish Termination :

Matte Tin (Sn) - with Nickel (Ni) barrier

Filter Feature :

No

Number of Positions :

30

Connector/Contact Type :

Contacts, Bottom

FFC, FCB Thickness :

0.30mm

Product Status :

Active

Locking Feature :

Slide Lock

Operating Temperature :

-25°C ~ 85°C

UL Flammability Code :

94V-0

Pitch :

0.020 (0.50mm)

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Termination Type :

Surface Mount

IEC Conformance :

No

Option :

GENERAL PURPOSE

Contact Material :

NOT SPECIFIED

DIN Conformance :

No

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Cable End Type :

Straight

Mounting Style :

RIGHT ANGLE

Current Rating (Amps) :

0.4A

Connector Type :

FFC/FPC CONNECTOR

Housing Material :

Thermoplastic, Halogen Free

Series :

CF20

Contact Finish :

Tin

Features :

Solder Retention, Zero Insertion Force (ZIF)

Reach Compliance Code :

Compliant

Contact Gender :

FEMALE

Actuator Material :

Thermoplastic, Halogen Free

MIL Conformance :

No

Mating Cycles :

-

Height Above Board :

0.079 (2.00mm)

Flat Flex Type :

FFC, FPC

JESD-609 Code :

e3

Housing Color :

Natural

Voltage Rating :

50V

Actuator Color :

Black

Total Number of Contacts :

30

Mounting Type :

BOARD
