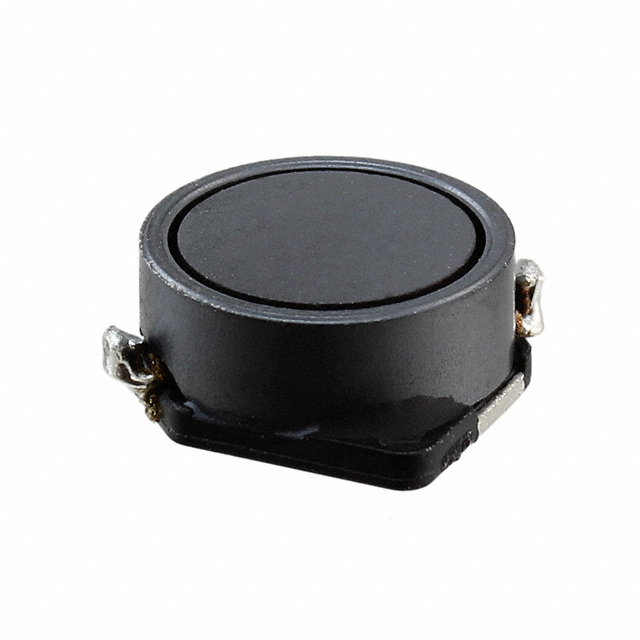

CDRR105NP-680MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Size / Dimension :

0.409Lx0.409W 10.40mmx10.40mm

Pbfree Code :

yes

Operating Temperature :

-40°C~125°C

Current - Saturation :

980mA

ECCN Code :

EAR99

Max DC Current :

1.38A

Material - Core :

Ferrite

HTS Code :

8504.50.80.00

Terminal Shape :

ONE SURFACE

Inductor Application :

POWER INDUCTOR

RoHS Status :

ROHS3 Compliant

DC Resistance (DCR) :

195mOhm Max

Number of Terminations :

2

Tolerance :

±20%

Case/Size Code :

4141

Packaging :

Cut Tape (CT)

Published :

2011

Current Rating :

1.38A

Package / Case :

Nonstandard

Inductor Type :

GENERAL PURPOSE INDUCTOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packing Method :

TR, 13 INCH

Inductance :

68μH

Shielding :

yes

Height :

4.8mm

Terminal Placement :

DUAL ENDED

Shape/Size Description :

RECTANGULAR PACKAGE

Reach Compliance Code :

Unknown

Height Seated (Max) :

0.189 4.80mm

Termination :

SMD/SMT

Test Frequency :

1kHz

Mount :

Surface Mount

Number of Functions :

1

Mounting Type :

Surface Mount

Series :

CDRR105
