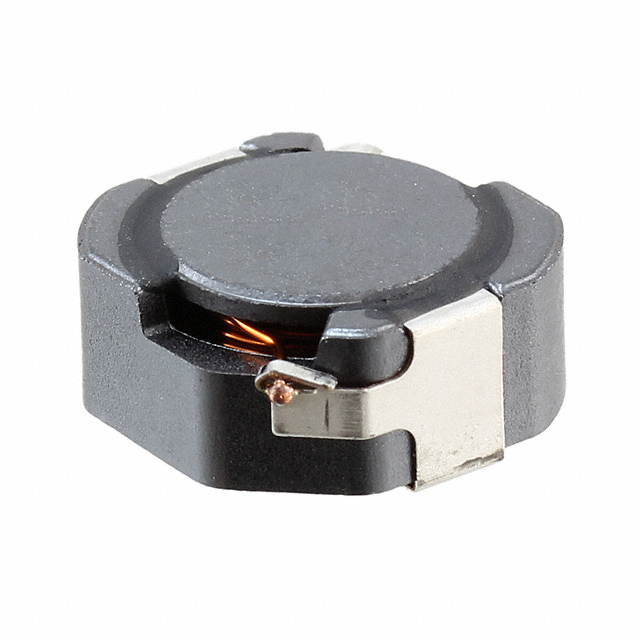

CDR6D28MNNP-470NC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Shielding :

yes

Packaging :

Tape and Reel (TR)

Tolerance :

±25%

Mount :

Surface Mount

Max DC Current :

720mA

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

12 Weeks

Lead Free :

Lead Free

Shape/Size Description :

RECTANGULAR PACKAGE

Terminal Shape :

WRAPAROUND

Inductance :

47μH

Operating Temperature :

-40°C~105°C

Radiation Hardening :

No

Inductor Application :

POWER INDUCTOR

Height :

3mm

Number of Functions :

1

Height Seated (Max) :

0.118 3.00mm

Weight :

346.998163mg

Size / Dimension :

0.256Lx0.256W 6.50mmx6.50mm

Depth :

6.8mm

Material - Core :

Ferrite

ECCN Code :

EAR99

Packing Method :

TR, 13 INCH

Test Frequency :

100kHz

Current Rating :

720mA

RoHS Status :

ROHS3 Compliant

Case/Size Code :

2626

Current - Saturation :

1.05A

Terminal Placement :

DUAL ENDED

Inductor Type :

GENERAL PURPOSE INDUCTOR

Series :

CDR6D28MN

Pbfree Code :

yes

HTS Code :

8504.50.80.00

Published :

2012

Package / Case :

Nonstandard

Number of Terminations :

2

DC Resistance (DCR) :

458.8mOhm Max
